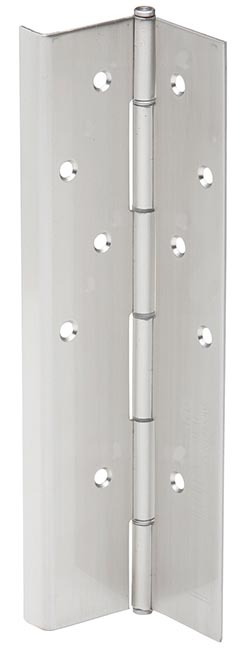

Ives 715 Full Mortise Half Wrap Pin And Barrel Continuous Hinge - Stainless Steel

Ives 715 Full Mortise Half Wrap Pin And Barrel Continuous Hinge - Stainless Steel

Product Details

Ives 715 Full Mortise Half Wrap Pin And Barrel Continuous Hinge - Stainless Steel

General Information:

- Non Handed - Flush Mounted, No Inset - 48" Maximum Door Width - Half Wrap Edge Guard - Square Edge Doo

Material: 14 Gauge Type 304 Stainless Steel 1/4" diameter 304 stanless pin with nylon split bearings

SINGLE DOOR: Hinge Side Clearance - 1/2", Lock Side Clearance - 1/8", Frame Irregularity - 1/32", Beveled Door Clearance - 1/32",Square Edged - 13/32" ,Beveled Edge - 7/16"

PAIR OF DOORS: Hinge Side Clearance - 1/4", Lock Side Clearance - 3/16", Frame Irregularity - 1/16", Beveled Door Clearance - 1/16", Square Edged Total - 3/4" Square Edged Each Door - 3/8" Beveled Edged Total -13/16" Beveled Edged Each Door - 13/32"

Standard Mounting Hardware: 10 X 1/2" Self Drilling Tek Screws, #10 X 1" Wood Screws

Door Weight: Each hinge can hold a door up to 600 lbs (Rivet nuts recommended)

ANSI Certified: All Ives Pin and Barrel Hinges certified to ANSI 156.26, Grade 1.

UL Listed: All Ives Steel and Stainless Steel Pin and Barrel Hinges are tested and approved UL 10C (3 hr).

Field Modifications: All Ives Pin and Barrel Continuous Hinges can be cut to length during installation. If more than 6" from bottom of hinge, additional modifications may be necessary.

Barrel Type: Twin Self Lubricated Nylon Bearings with Stainless Steel Pin.

Ives 715 Full Mortise Half Wrap Pin And Barrel Continuous Hinge - Stainless Steel

SKU: 715

In Stock

Chat

$592.25

Oversized item, extra shipping charge may be added

About this item

Ives Continuous Hinges are designed to last the life of the building. The unique design distributes the weight of the door along the entire length of the frame, reducing the high amount of stress normally associated at top of door and frame on butt hinge applications. Not only does this reduce hinge failure, it also keeps your door in constant alignment, eliminating the chance of door sag. These characteristics make continuous hinges suitable for high use/high traffic doors.

The design of a continuous hinge eliminates the gap between the door and the frame. The absence of gap also helps prevents finger from being pinched, making it a safer device than traditional hinges. These benefits result in higher efficiency and less maintenance, maximizing the value of your opening investment.

Resources

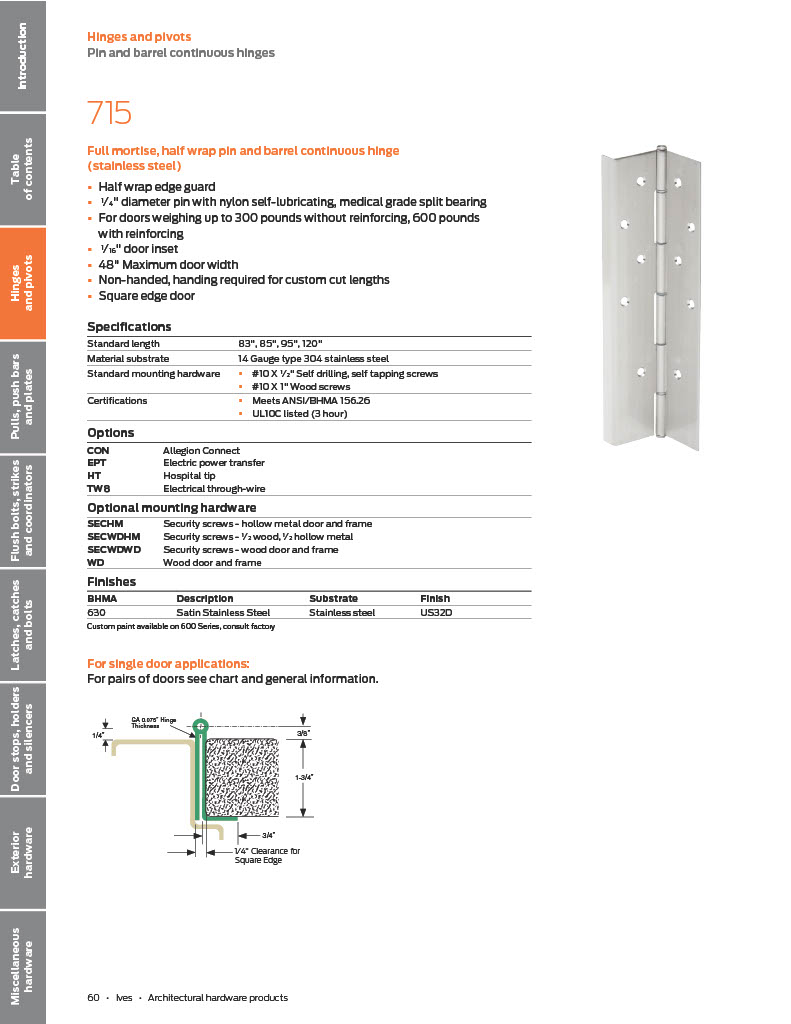

IVES Full Catalog
