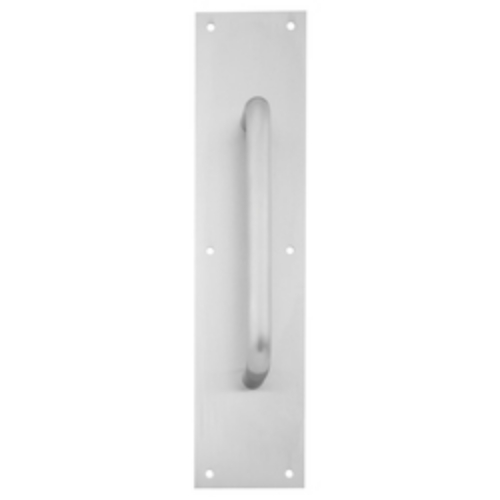

Ives 8302-0, 10" Door Pull - 3/4" Round - 3-1/2" x 15" Plate

Ives 8302-0, 10"*Door Pull - 3/4" Round - 3-1/2" x 15" Plate*

**Pull Dimensions

**

Projection "A" -2-1/4"

Clearance - 1-1/2"

Center to Center "B" - 10"

Overall Length "C" - 10-3/4"

Standard Mounting

All mounting hardware is for standard 1-3/4" door.

(2) 1/4-20 x 2-1/4" brass, oval head machine screws; plated to match.

(2) No. 14 countersunk washers; plated to match

Finish: B3 (US3) Bright Brass, Clear Coat (605) B26D (US26D) Satin Chrome (626) S32D (US32D) Satin Stainless Steel (630)

Model: 83302, 8302-0, 83020US3, 83020US26D, 83020US32D, 83020B3, 83020B26D, 83020S32D

Related Categories

• Pull plates
