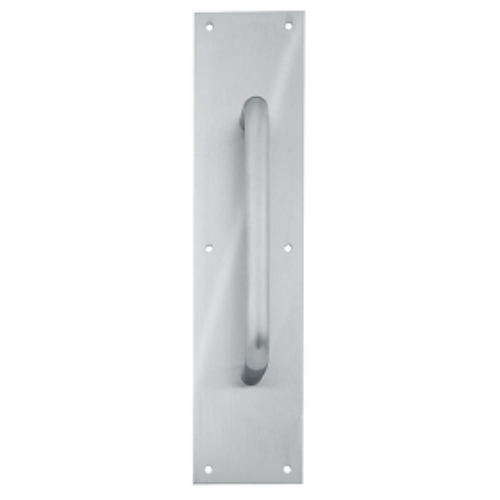

Ives 8302-6, 6" Door Pull - 3/4" Round - 4" x 16" Plate

Ives 8302-6, 6"Door Pull - 3/4" Round - 4" x 16" Plate

**Pull Dimensions

**

Projection "A" -2-1/4"

Clearance - 1-1/2"

Center to Center "B" - 6"

Overall Length "C" -6-3/4"

Standard Mounting

All mounting hardware is for standard 1-3/4" door.

(2) 1/4-20 x 2-1/4" brass, oval head machine screws; plated to match.

(2) No. 14 countersunk washers; plated to match

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10B (US10B) Dark Bronze, Oil Rubbed (613) B26 (US26) Bright Chrome (625) B26D (US26D) Satin Chrome (626) S32D (US32D) Satin Stainless Steel (630) PA28 (US28) Satin Alumimum, Clear Anodized (628)

Model: 8302, 8302-6, 83026US3, 83026US4, 83026US10B, 83026US26, 83026US26D, 83026US28, 83026US32D, 83026B3, 83026B4, 83026B10B, 83026B26, 83026B26D, 83026S32D, 83026PA28
