Ives 9100HD-33 US32D Push Bar, 1" Round, 2-1/2" Projection, 33" CTC, Satin Stainless Steel Finish

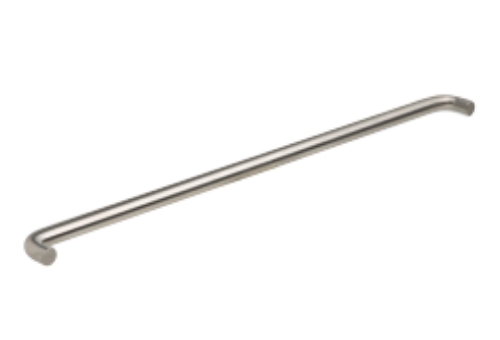

Ives 9100HD-33 US32D Solid Push Bar, 1" Round, 2-1/2" Projection, 33" CTC, Satin Stainless Steel Finish

Length: 33"

Certifications: - Meets ANSI A156.06

Mounting:

 Heavy duty mounting hardware exceeds industry standards 3/8-16 mounting hardware Specify door thickness. Standard mounting hardware for door thickness of 1-1/2" to 1-3/4" unless otherwise specified. Optional package available for 2" and 2-1/4" thick doors. Comes standard with type NS mounting.Projection:"A"   2-1/2" Clearance:    1-1/2" Center to center B:    25-45" Overall length C:    Add 1" to CTC length

Material substrate: Made from solid aluminum (6061-T6 Alloy), brass, or stainless steel (304 or 316 Series)

Recommended for external applications

Caution: The length of push bar should not interfere with the door jamb or cause a pinch point
