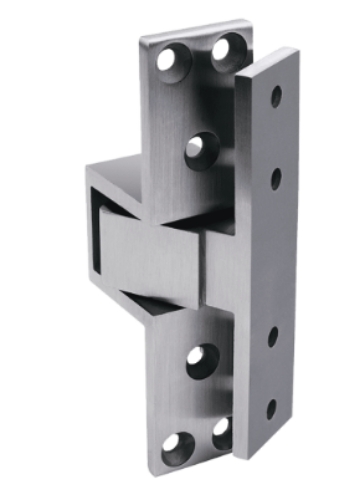

Ives 91105F Pocket Pivot

Screenshot 2024-05-13 142953
1-Page85-IVES-ARC
1-Page1-FINISHESCHART
Screenshot 2024-05-13 142953
1-Page85-IVES-ARC
1-Page1-FINISHESCHART
naxt
prev

Product Details

Ives 91105F Pocket Pivot

Non-handed

All stainless steel construction. US32D Satin Stainless Steel

Allows door to open a full 90 (* degree mark)

Full mortise

90 pound load bearing

Use two for doors up to 7'0" and over 7'0" use three.

PT, Power Transfer version has four 28 guage wires. Rated 50 VOC or VAC @ 3.5 amps. Continuous or 16 amps pulse. Maximum pulse 400 milliseconds.

Ives 91105F Pocket Pivot

SKU: 91105F

In Stock
icon Chat
Picture for manufacturer Ives

Finish *

US32D - Satin Stainless Steel (630)
US32D - Satin Stainless Steel (630)

$406.47

$713.10

You saved $306.63

About this item

UL Listed 3 hour fire doors or 20 minute wood fire doors Meets ANSI/BHMA A156.4 C07611

Resources

Ives 91105F Pocket Pivot

Non-handed

All stainless steel construction. US32D Satin Stainless Steel

Allows door to open a full 90 (* degree mark)

Full mortise

90 pound load bearing

Use two for doors up to 7'0" and over 7'0" use three.

PT, Power Transfer version has four 28 guage wires. Rated 50 VOC or VAC @ 3.5 amps. Continuous or 16 amps pulse. Maximum pulse 400 milliseconds.
