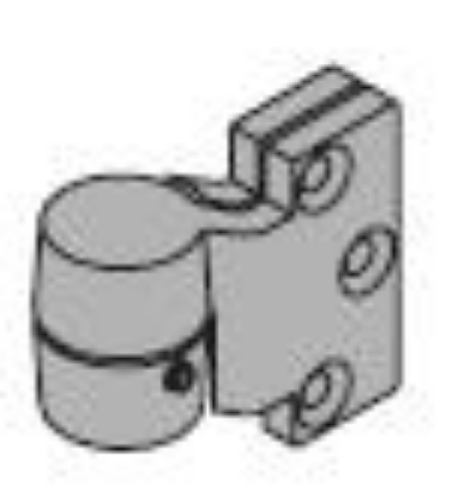

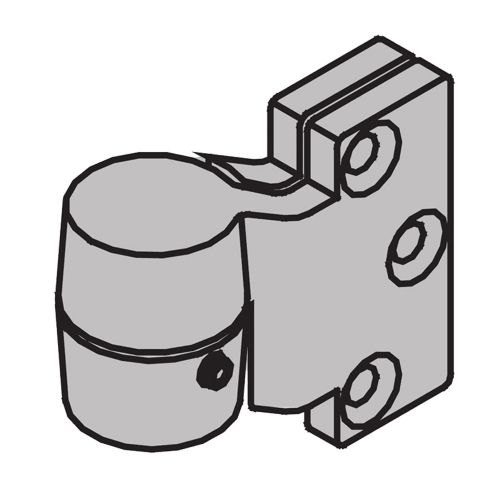

Ives 7212-INT Intermediate Pivot

Ives 7212-INT Intermediate Pivot

Use with 7212, 7212V or 7222 3/4 Offset Pivot

Handed

Vertical adjustment 3/16", include positive locking.

Model:Ives 7212-INT, 7212INT, 7212INTSP28, 7212INTSP313, 7212INTSP28RH, 7212INTSP313RH, 7212INTSP28LH, 7212INTSP313LH, 7212INTUS10, 7212INTUS10B, 7212INTUS26, 7212INTUS26D, 7212INTUS3, 7212INTUS4, RH, LH. 7212 INT SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, SP10 - Light Bronze Painted, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, RH, LH. Right or Left hand

NFPA 80, Section 3-3.8 requires intermediate pivot on some fire door applications, consult

factory. Use for door heights over 7'0" and one every 2'6" or . Use for door weight over

the pivot set limit. One additional for every additional 100 pounds. Door thickness 1-3/4"

mimumum with 1/8" bevel in 2".
