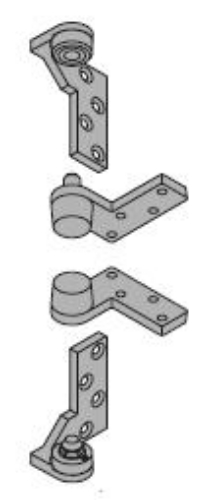

Ives 7212V-SET, 3/4" Offset Pivot Set

Ives 7212V- SET, 3/4" Offset Pivot Set

Handed

Top, jamb mount

Bottom, jamb mount

Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"

Maximum door load 200 pounds

Vertical adjustment range 3/16", with positive locking

Model:Ives 7212V-SET, 7212VSET, 7212VSETSP28, 7212VSETSP313, 7212VSETSP10, 7212VSETSP28RH, 7212VSETSP313RH, 7212VSETSP28LH, 7212VSETSP313LH, 7212VSETUS10, 7212VSETUS10B, 7212VSETUS26, 7212VSETUS26D, 7212VSETUS3, 7212VSETUS4, RH, LH. 7212V SET SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, SP10 - Light Bronze Painted, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, RH, LH. Right or Left hand
