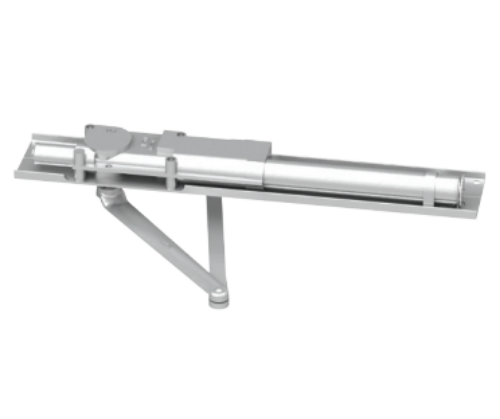

LCN 5034 REG Concealed (in tube) Door Closer - Size 4

Product Details

LCN 5034 Concealed (in tube) Door Closer - Size 4

Size 4: for Interior door width 38" (965 mm) to 48" (1219 mm), Exterior (and Vestibule) door 30" (762 mm) to 36" (914 mm)

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

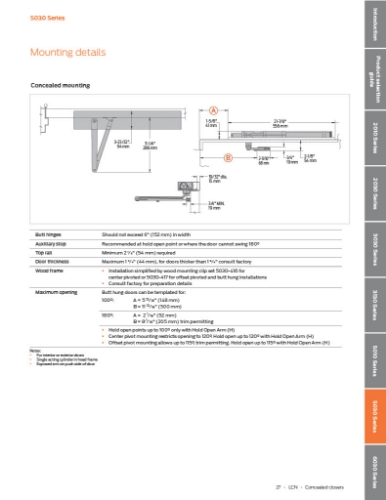

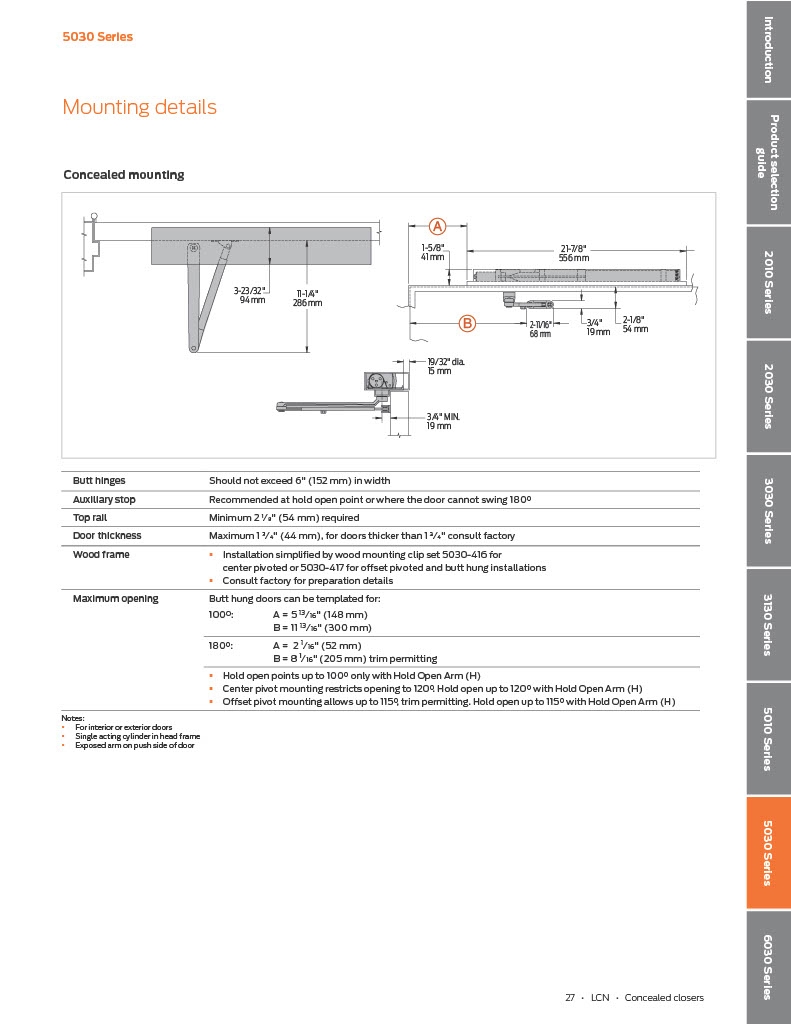

Mounting:Concealed (in tube); aluminum frame requires minimum 1-3/4˝ (44 mm) x 4-1/2˝ (114 mm) tube

Top Rail:Minimum 2-1/8˝ (54 mm)required

Door Thickness:Maximum 1-3/4˝ (44 mm),

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5034-REG LH AL, 5034REGLHAL, 5034LHAL, 5034LH689, 5034ALLH, 5034-REG RH AL, 5034REGRHAL, 5034RHAL, 5034RH689, 5034ALRH

LCN 5034 REG Concealed (in tube) Door Closer - Size 4

SKU: 5034-REG

In Stock

Finish *

ALUM - ALUMINUM (BHMA 689)
ALUM - ALUMINUM (BHMA 689)
DKBRZ - DARK BRONZE (BHMA 695)
DKBRZ - DARK BRONZE (BHMA 695)

Handing *

$1,047.20

$1,540.00

You saved $492.80

About this item

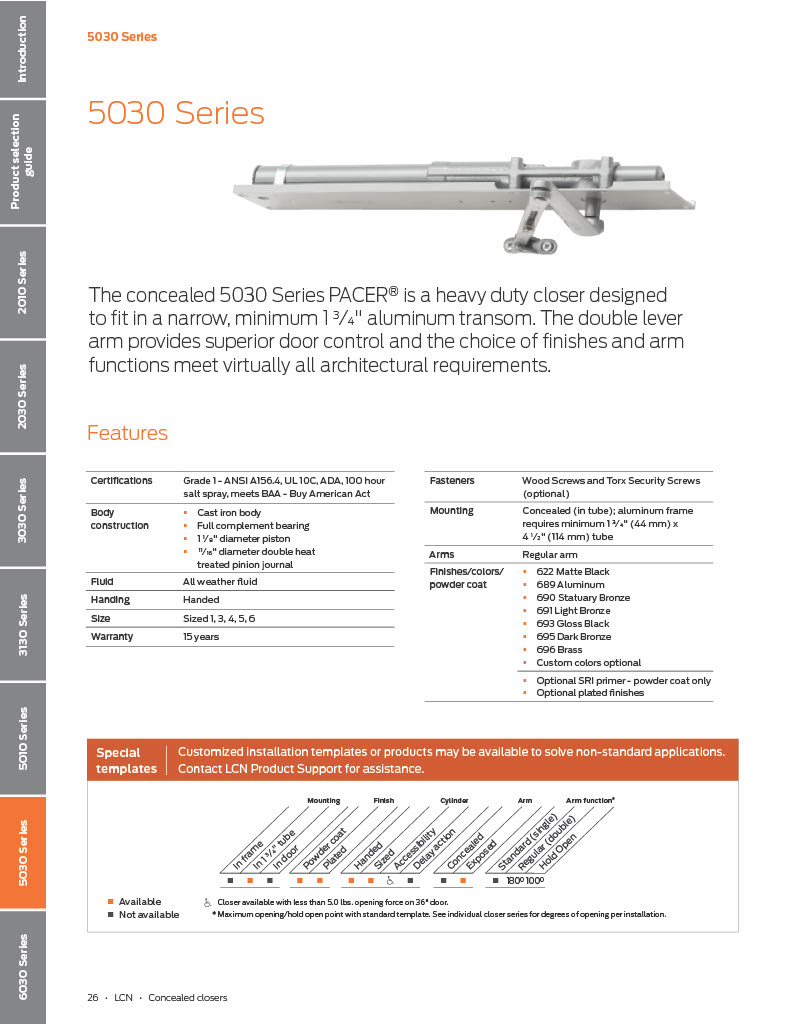

The concealed 5030 Series PACER® is a heavy duty closer designed to fit in a narrow, minimum 1-3/4˝ aluminum transom. The double lever arm provides superior door control and the choice of finishes and arm functions meet virtually all architectural requirements.





LCN 5034 Concealed (in tube) Door Closer - Size 4

Size 4: for Interior door width 38" (965 mm) to 48" (1219 mm), Exterior (and Vestibule) door 30" (762 mm) to 36" (914 mm)

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

Mounting:Concealed (in tube); aluminum frame requires minimum 1-3/4˝ (44 mm) x 4-1/2˝ (114 mm) tube

Top Rail:Minimum 2-1/8˝ (54 mm)required

Door Thickness:Maximum 1-3/4˝ (44 mm),

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5034-REG LH AL, 5034REGLHAL, 5034LHAL, 5034LH689, 5034ALLH, 5034-REG RH AL, 5034REGRHAL, 5034RHAL, 5034RH689, 5034ALRH
