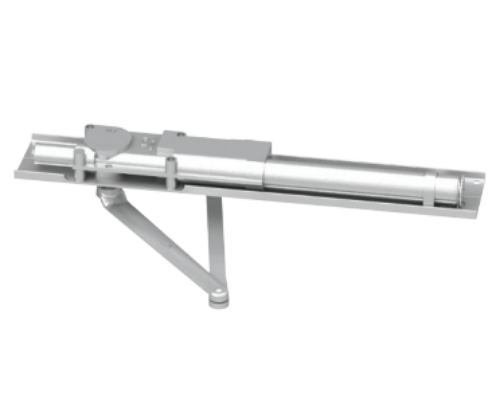

LCN 5035-H Concealed (in tube) Door Closer with Hold-Open Arm - Size 5

Product Details

LCN 5035-H Concealed (in tube) Door Closer with Hold-Open Arm - Size 5

Size 5: for Interior door width 48" (1219 mm) to 54" (1372 mm), Exterior (and Vestibule) door 36" (914 mm) to 42" (1067 mm)

Hold Open Arm:Provides hold-open function for 100 Degree Template, adjustment at elbow

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

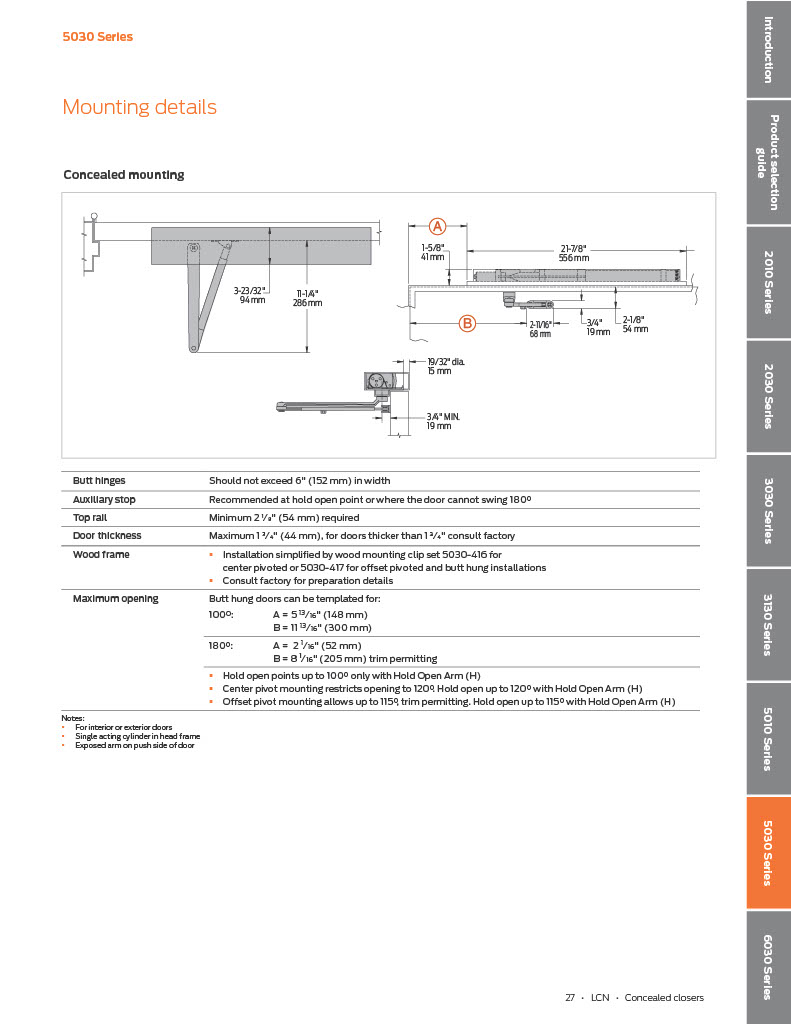

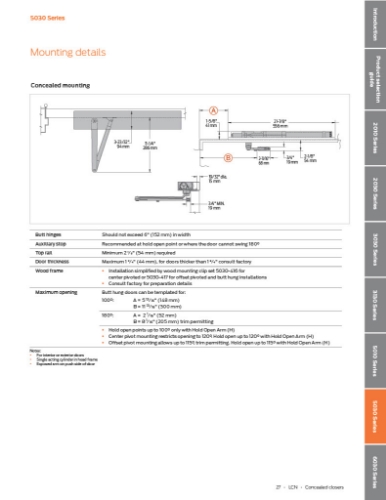

Mounting:Concealed (in tube); aluminum frame requires minimum 1-3/4˝ (44 mm) x 4-1/2˝ (114 mm) tube

Top Rail:Minimum 2-1/8˝ (54 mm)required

Door Thickness:Maximum 1-3/4˝ (44 mm),

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5035-H LH AL, 5035-HLHAL, 5035-HLHAL, 5035-HLH689, 5035-HALLH, 5035-H RH AL, 5035-HRHAL, 5035-HRHAL, 5035-HRH689, 5035-HALRH

LCN 5035-H Concealed (in tube) Door Closer with Hold-Open Arm - Size 5

SKU: 5035H

In Stock

Finish *

ALUM - ALUMINUM (BHMA 689)
ALUM - ALUMINUM (BHMA 689)

Handing *

$1,047.20

$1,540.00

You saved $492.80

About this item

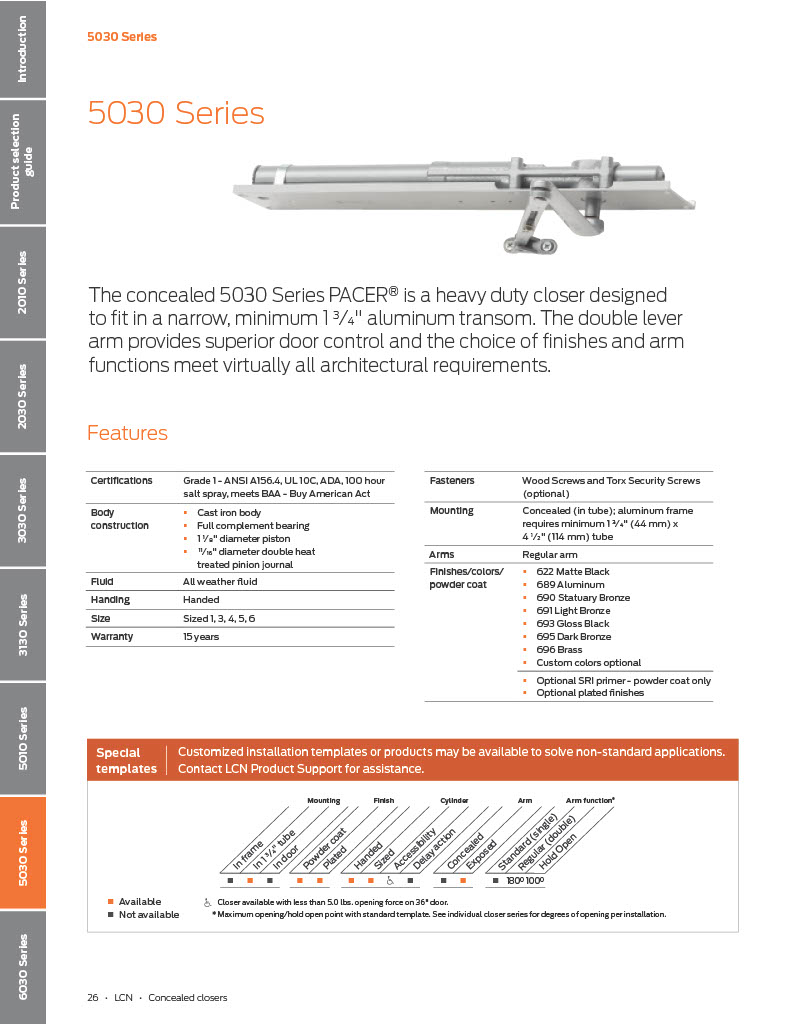

The concealed 5030 Series PACER® is a heavy duty closer designed to fit in a narrow, minimum 1-3/4˝ aluminum transom. The double lever arm provides superior door control and the choice of finishes and arm functions meet virtually all architectural requirements.





LCN 5035-H Concealed (in tube) Door Closer with Hold-Open Arm - Size 5

Size 5: for Interior door width 48" (1219 mm) to 54" (1372 mm), Exterior (and Vestibule) door 36" (914 mm) to 42" (1067 mm)

Hold Open Arm:Provides hold-open function for 100 Degree Template, adjustment at elbow

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

Mounting:Concealed (in tube); aluminum frame requires minimum 1-3/4˝ (44 mm) x 4-1/2˝ (114 mm) tube

Top Rail:Minimum 2-1/8˝ (54 mm)required

Door Thickness:Maximum 1-3/4˝ (44 mm),

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5035-H LH AL, 5035-HLHAL, 5035-HLHAL, 5035-HLH689, 5035-HALLH, 5035-H RH AL, 5035-HRHAL, 5035-HRHAL, 5035-HRH689, 5035-HALRH

5030_LCN1
LCN 5035-H Concealed (in tube) Door Closer with Hold-Open Arm - Size 5

Product code: 5035H

In Stock

$1,540.00

$1,047.20

5030_LCN1
LCN 5035-H Concealed (in tube) Door Closer with Hold-Open Arm - Size 5

Product code: 5035H

In Stock

$1,540.00

$1,047.20
