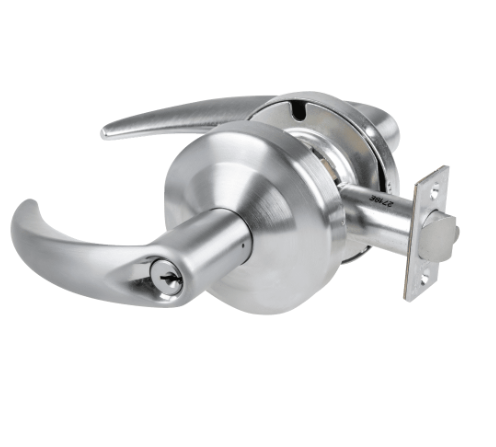

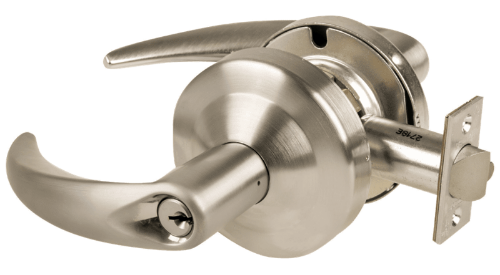

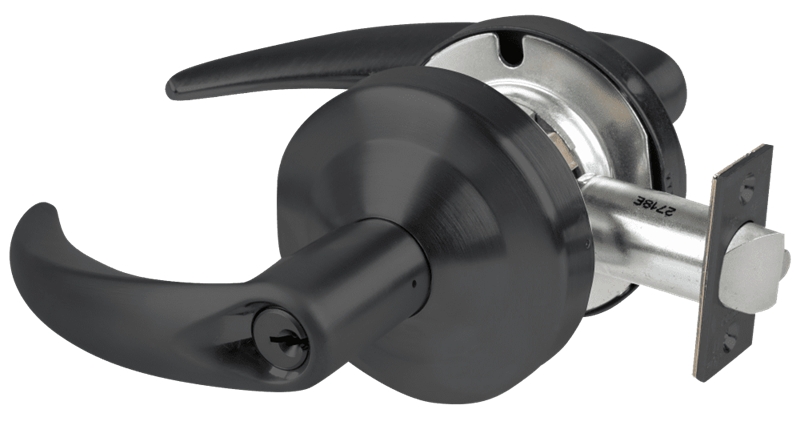

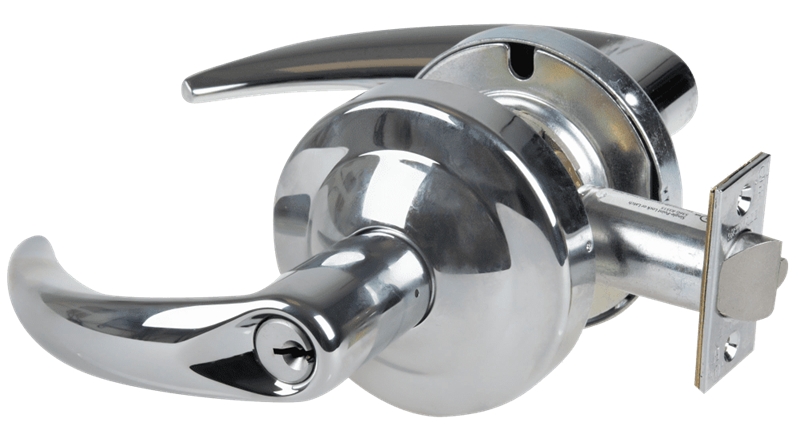

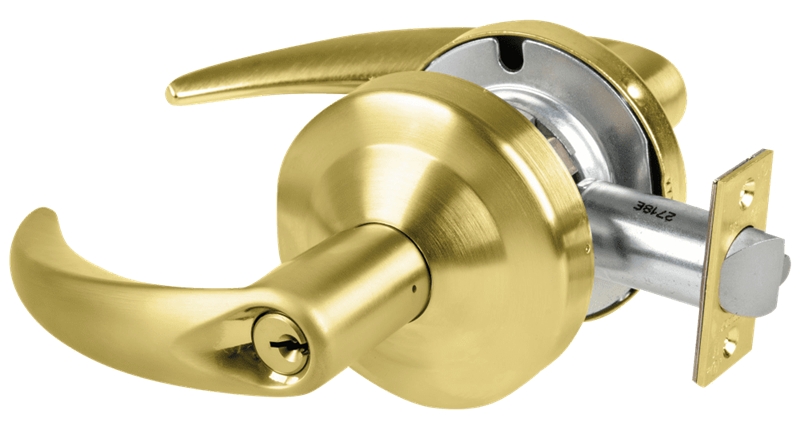

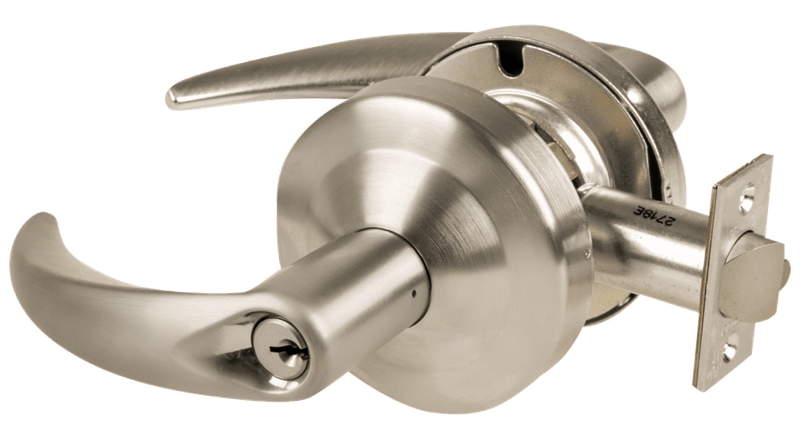

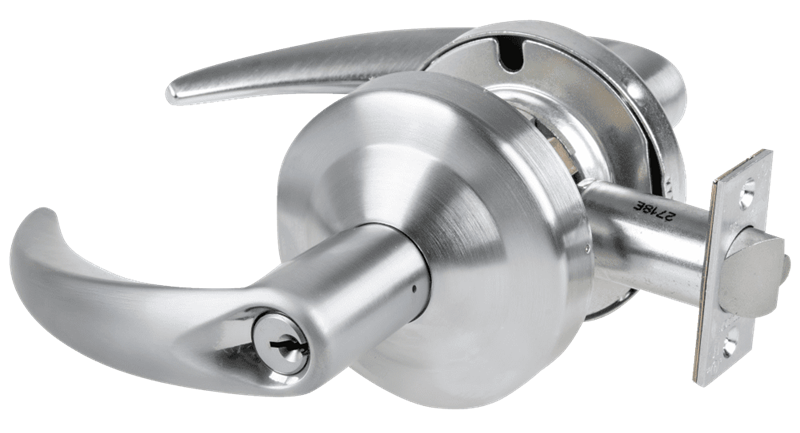

Schlage ND92PD OME - Grade 1 Entrance Lock, Omega Lever, Standard Cylinder

Schlage ND92PD OME - Vandlgard Entrance Lever Lock with 6-Pin Conventional Cylinder - Omega Style

Entrance Lock - Vandlgard -ANSI F109

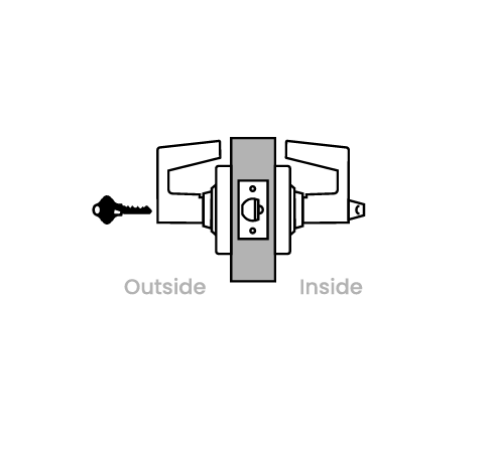

Turn/push-button locking:Pushing and turning the button locks the outside lever, requiring use of a key until the button is manually unlocked. Push-button locking: Pushing button locks outsidelever until unlocked by key or by turning the inside lever.

Vandlgard is designed to disengage outside spindle from latch when locked.

Lever Styles: Omega (OME)

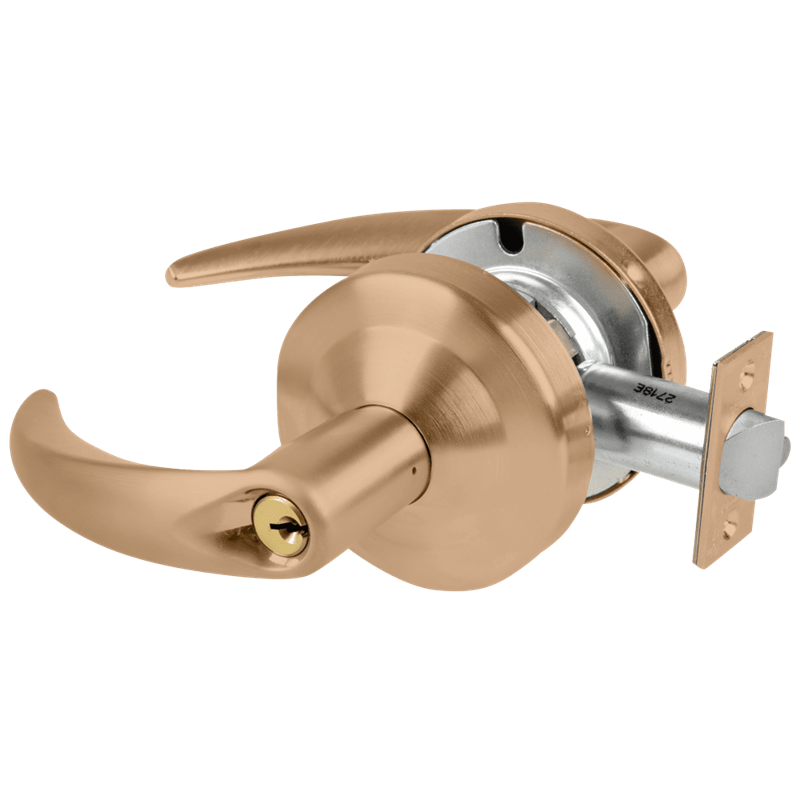

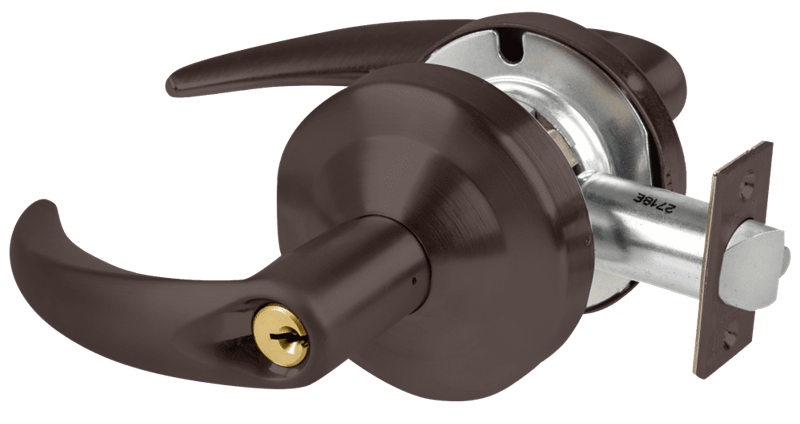

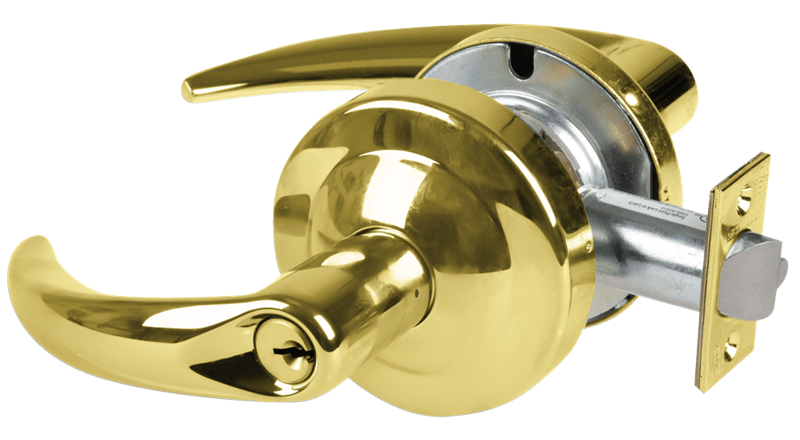

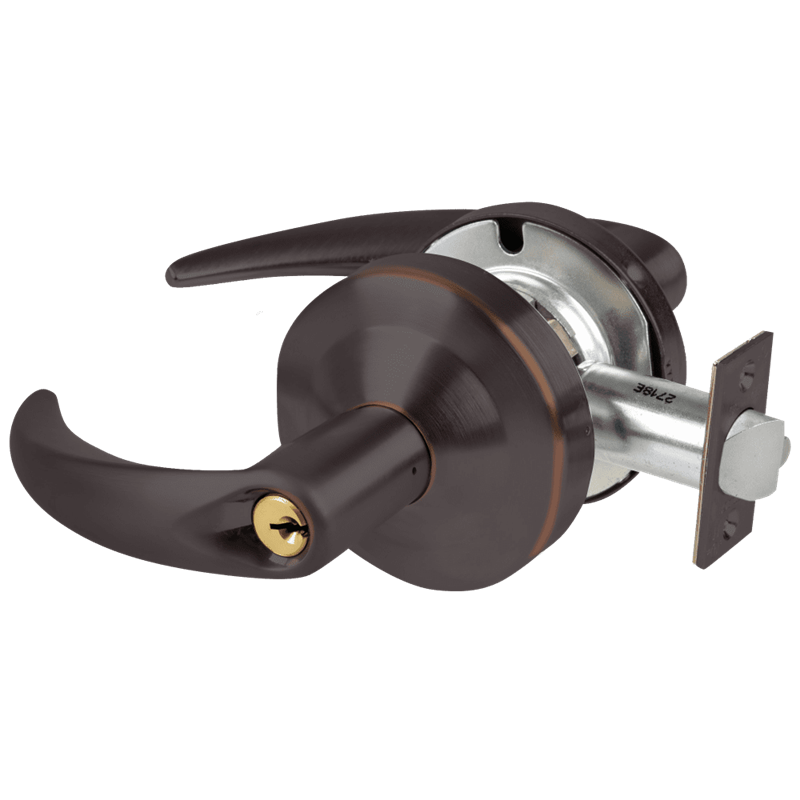

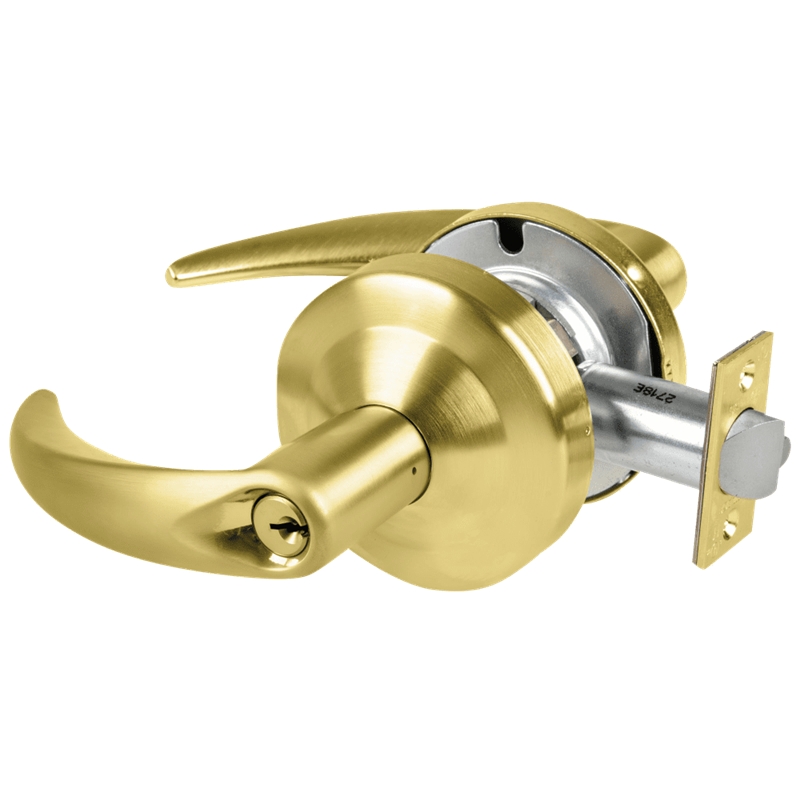

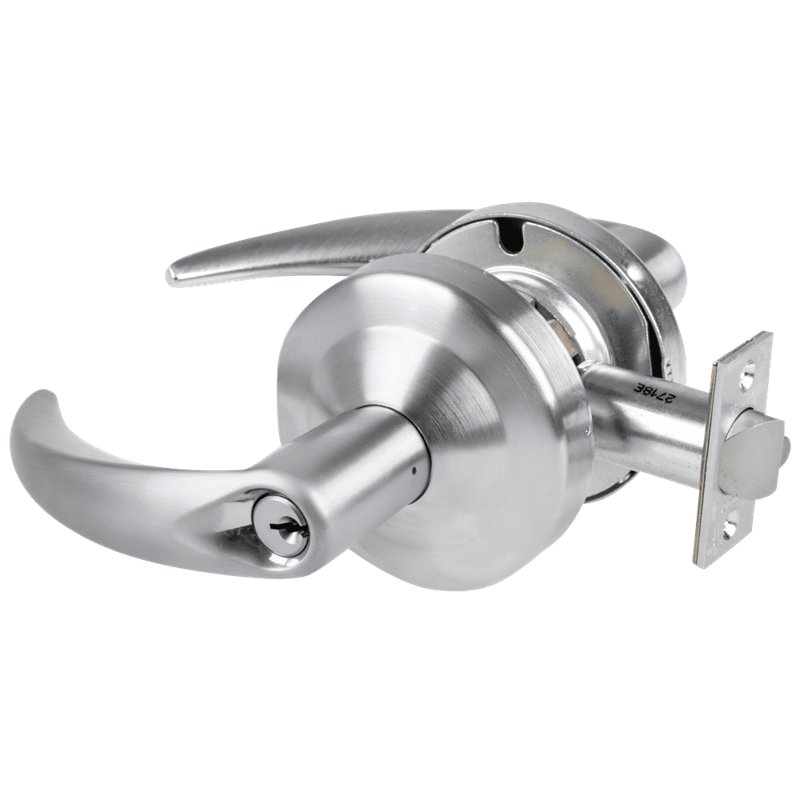

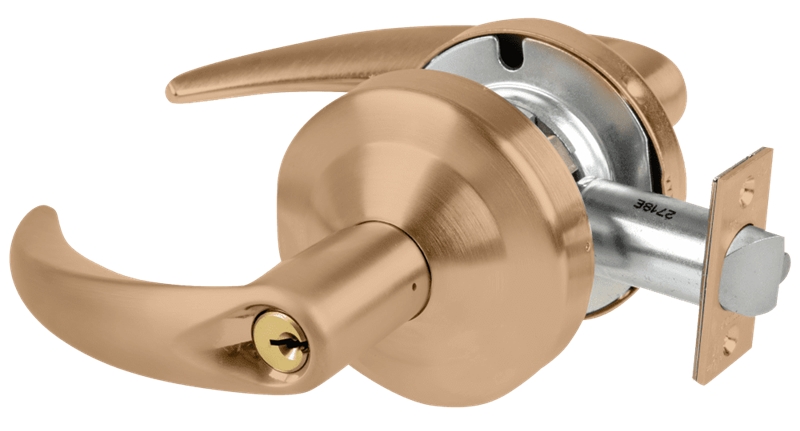

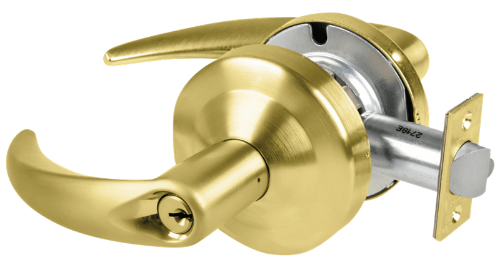

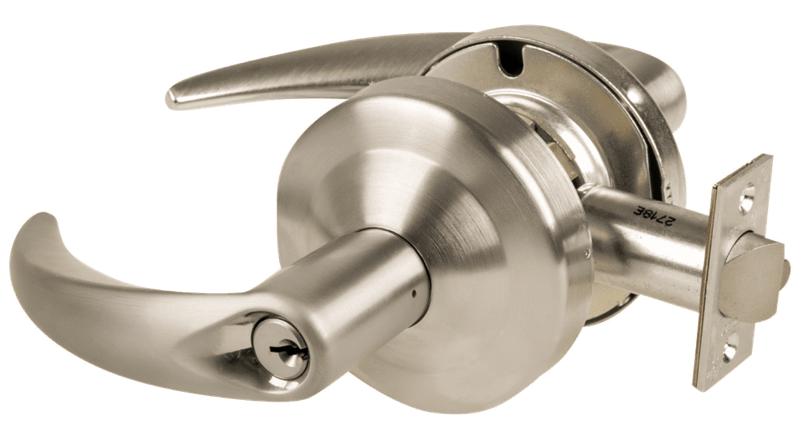

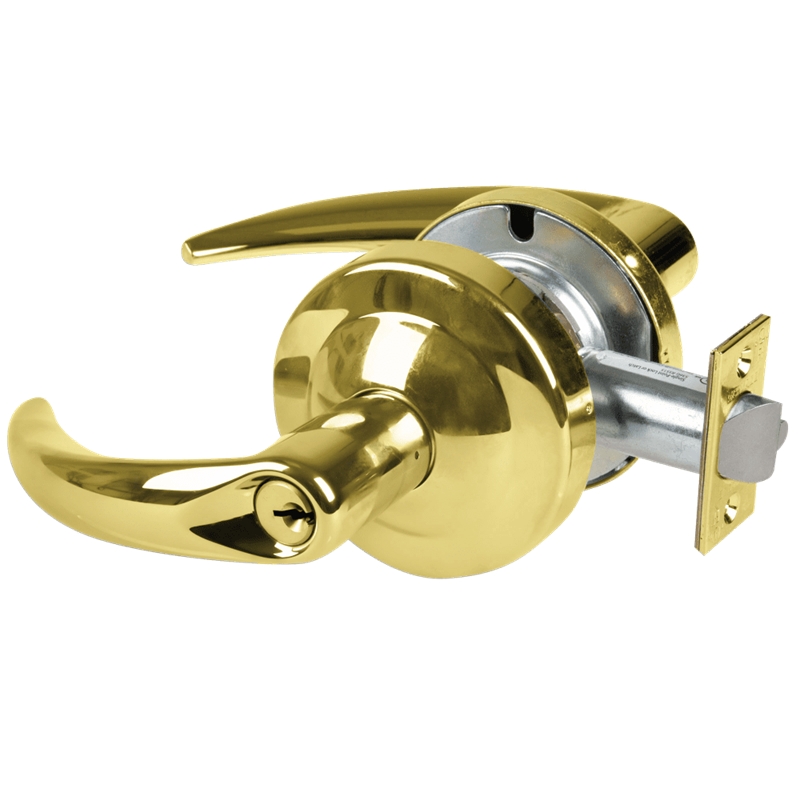

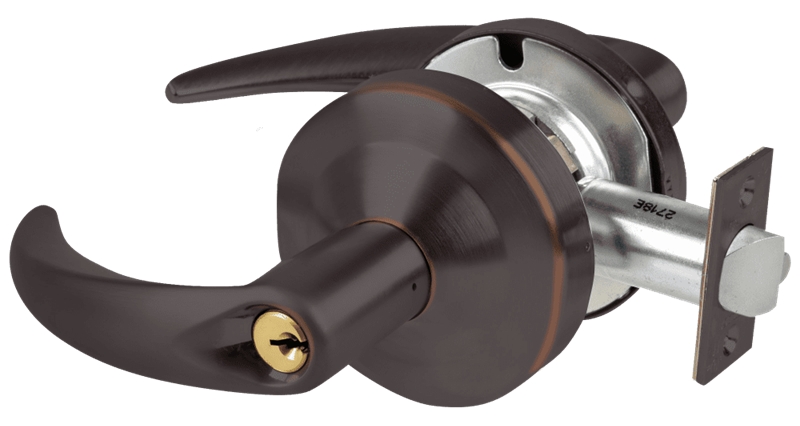

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome, 626AM - Satin Chrome Antimicrobial, 643E - Aged Bronze, 622 - Matte Black.

Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.

Keying: 6-Pin Solid brass Cylinder, C or Everest C123 keyway with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.

The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately (please call).

Backset: 2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available (please call).

Latch Bolt: Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors (please call).

Strikes: ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike

Model: Schlage, ND92PD, ND92, ND92PDOME605,  ND92PDOME606,  ND92PDOME612,  ND92PDOME613,  ND92PDOME619, ND92PDOME622,  ND92PDOME625,  ND92PDOME626, ND92PDOME626AM, ND92PDOME643E, 605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643E.

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:

Seven-year limited warranty for all functions including Vandlgard.

Exposed Trim:

Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
