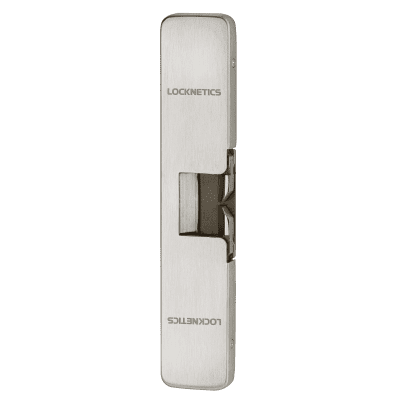

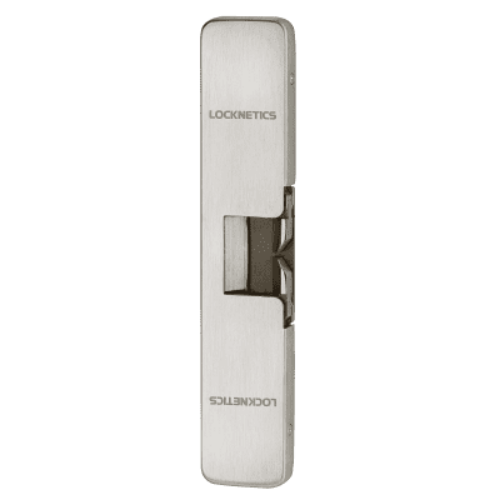

Locknetics RS210-32D Electric Rim Strike, Surface Mounted, Field Selectable (Safe/Secure), Satin Stainless Steel Finish

RS210-32D Electric Rim Strike, Surface Mounted, Field Selectable (Safe/Secure), 1/2" Depth, Rim Strike Spacer, 12/24 VDC, Satin Stainless Steel Finish

Product name:RS210-32D  Product description:Rim strike - 1⁄2" depth with spacers  Finish:630/US32D  Voltage:12/24 VDC  UPC:194555701861

The RS Series of surface mounted electric rim strikes are designed with endurance and flexibility. Available to accommodate rim exit devices with a 1 ⁄2" or 3⁄4" throw pullman latch bolt and multiple spacers are included for superior installation. Four attachment points to the frame provide for extra durability.

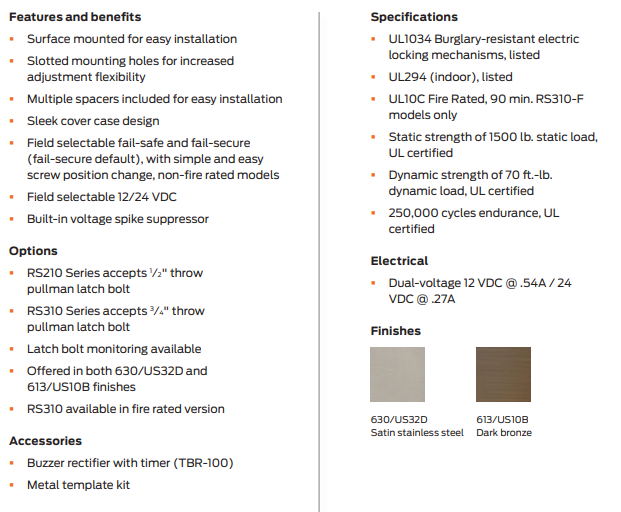

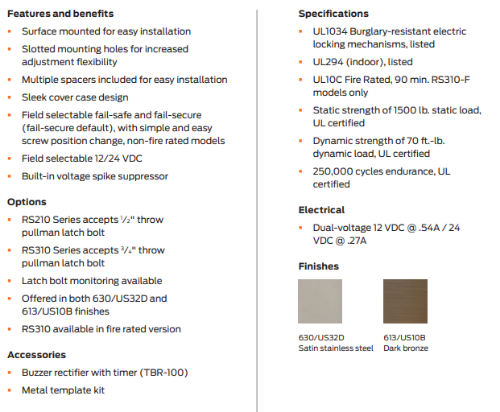

Features and benefits:

Surface mounted for easy installationSlotted mounting holes for increased adjustment flexibilityMultiple spacers included for easy installationSleek cover case designField selectable fail-safe and fail-secure (fail-secure default), with simple and easy screw position change, non-fire rated modelsField selectable 12/24 VDCBuilt-in voltage spike suppressor

Options:

RS210 Series accepts 1 ⁄2" throw pullman latch boltRS310 Series accepts 3⁄4" throw pullman latch boltLatch bolt monitoring availableOffered in both 630/US32D and 613/US10B finishesRS310 available in fire rated version AccessoriesBuzzer rectifier with timer (TBR-100)Metal template kit

Specifications:

UL1034 Burglary-resistant electric locking mechanisms, listedUL294 (indoor), listedUL10C Fire Rated, 90 min. RS310-F models onlyStatic strength of 1500 lb. static load, UL certifiedDynamic strength of 70 ft.-lb. dynamic load, UL certified250,000 cycles endurance, UL certifiedElectrical:

Dual voltage:  12VDC @54A/24VDC @ 0.27AStrike dimensions:

RS200:9" x 1 3⁄4" x 1 ⁄2" (229mm x 44.5mm x 13mm)
