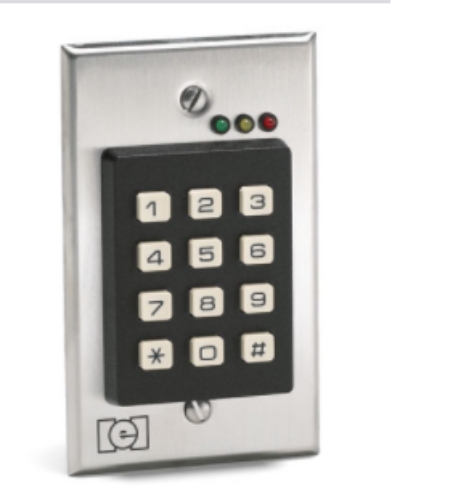

Nortek - Linear 232I Indoor Flush-mount Keypad

Nortek Linear 232I Indoor Flush-mount Keypad *120 Entry Code Code Capacity*

Affordable single door access control keypad designed to meet the indoor flush mount needs of lighter volume access control environments.

There are three LED's to indicate operation status and provide the user with visual PIN entry confirmation.

The i style keypad mounts to most standard single-gang electrical back boxes.

**Specifications

Operating voltage:**12-24 VAC/VDC "  auto adjusting

Dimensions:2.75″ W x 4.50″ H x 1.3 " D

Current draw:94 mA maximum (add 30 mA for each relay)

Temperature tolerance:-20F to 130F

Features

120 users Single gang design 1 SPDT 2 amp relay and three 1 amp SPDT relays Door Position Monitoring Door ajar, forced door, alarm shunt outputs Indoor use only Functionality mode: 212, 232

nortek 232i, linear 232i, nortek linear 232i, 232i nortek, 232i linear, 232i nortek linear, Order number  0-213111,  0-213111,
