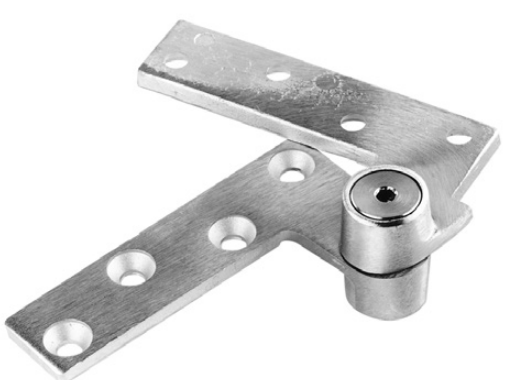

Norton Rixson 180 Top Pivot 3/4" Offset

Norton Rixson *180 Top Pivot, 3/4" Offset*

Application:

Full MortiseNon-handedStandard Top Pivot Description/Features:

Standard top pivot for most offset pivot sets and floor closersOil-impregnated sintered bronze bushingNon-ferrous base material3/4" (19mm) offset (measured from centerline of pivot to face of door)Furnished with wood and machine screwsAvailable with longer than standard pivot pins. Increments are 1/4" (6mm), 1/2" (13mm), 3/4" (19mm) onlyFor extra wide or high traffic applications see Model H180

Model: Norton Rixson 180-605, 180-606, 180-612, 180-613, 180-619, 180-625, 180-626
