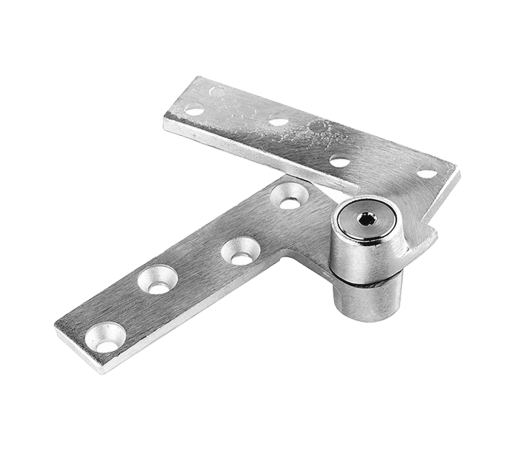

Norton Rixson H180 Heavy DutyTop Pivot, 3/4" Offset

Norton Rixson *H180 Heavy DutyTop Pivot, 3/4" Offset*

Application:

Full MortiseNon-handedHeavy-Duty Top Pivot

Description/Features:

Standard top pivot for most offset pivot sets and floor closersOil-impregnated sintered bronze bushingNon-ferrous base material3/4" (19mm) offset (measured from centerline of pivot to face of door)Furnished with wood and machine screwsAvailable with longer than standard pivot pins. Increments are 1/4" (6mm), 1/2" (13mm), 3/4" (19mm) onlyFor extra wide or high traffic prefix "H" –H pivots have heavy-duty needle bearings

Model: Norton Rixson H180-626, H180-612, H180612, H180626
