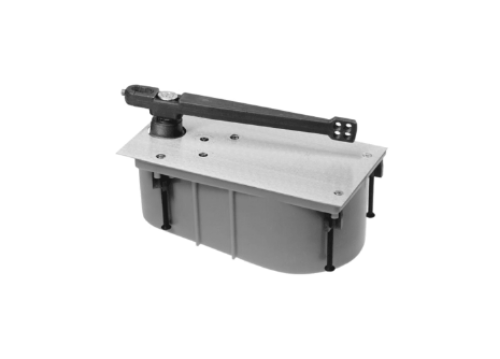

Norton Rixson 28 Heavy Duty Center Hung Floor Closer, 626 - Satin Chrome

Norton Rixson *28 Heavy Duty Center Hung Floor Closer, 626 - Satin Chrome*

Application:

Single Acting, HandedExterior or Interior DoorsWeight to 350 lbs.Centering ArmSizes up to 4'0" x 8'6"* (1219 x 2591mm)For doors taller than 8'6" use top pivot # 345 in lieu of 340

Description/Features:

Centering arm with adjusting screws in face of doorBuilt-in positive dead stop prevents door from swinging beyond the desired opening degree, Specify 90 Degree or 105 DegreeSeparate and independent valves for closing speed, latch speed and backcheckAvailable non-hold open (N) or selective hold open (S) at same degree as dead stopArm reinforcement bracket for wood doors - prefix WStandard top pivot: #340 includedNot allowed for fire rated doors

Model:28105N LH 626, 28105S LH 626, 28105N RH 626, 28105S RH 626, 2890N LH 626, 2890S LH 626, 2890N RH 626, 2890S RH 626, 28NR90626, 28NL105626, 28NL90626, 28NR105626, 28SL90, 28SL105626, 28SR90626, 28SR105626, 28105NLH626, 28105S-LH-626, 28105NRH626, 28105S-RH-626, 2890NLH626, 2890-S-LH-626, 2890NRH626, 2890S-RH-626

Related Categories

• Floor Closers
