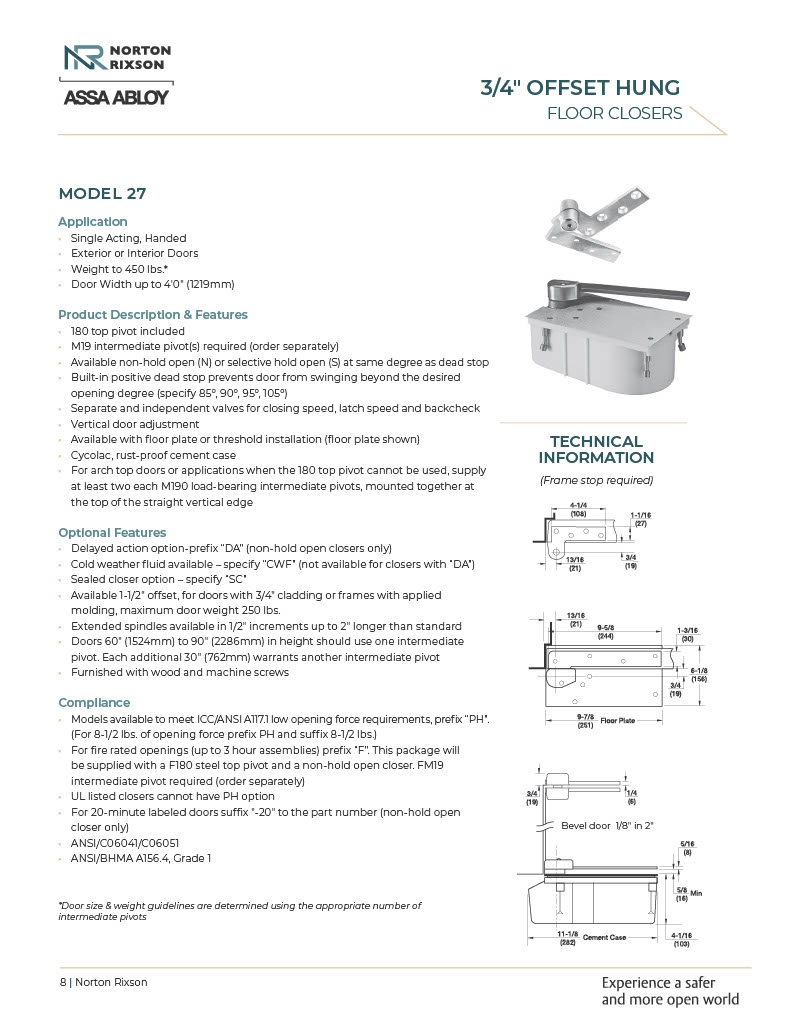

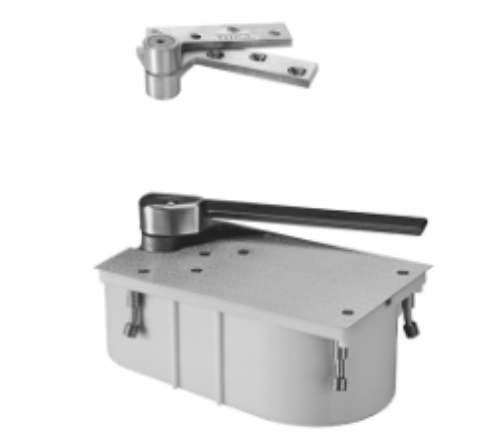

Norton Rixson 27 Heavy Duty 3/4 Offset Floor Closer, 626 - Satin Chrome

Norton Rixson *27 Heavy Duty 3/4 Offset Floor Closer, 626 - Satin Chrome*

Application:

Single Acting, HandedExterior or Interior DoorsWeight to 450 lbs.*Door Width up to 4'0" (1219mm)Door size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

Built-in positive dead stop prevents door from swinging beyond the desired opening degree specify  90 Degree, 105 DegreeSeparate and independent valves for closing speed, latch speed and backcheckAvailable non-hold open (N) or selective hold open (S) at same degree as dead stopAvailable 1-1/2" offset, for doors with 3/4" cladding or frames with applied molding, maximum door weight 250 lbs.Standard top pivot: #180 includedFor fire rated openings (up to 3 hour assemblies) prefix “F". This package will be supplied with a steel top pivot (F180) and a non-hold open closer. Intermediate pivot required: FM19 (order separately)

Model:27105N LH 626, 27105S LH 626, 27105N RH 626, 27105S RH 626, 2790N LH 626, 2790S LH 626, 2790N RH 626, 2790S RH 626, 27NR90626, 27NL105626, 27NL90626, 27NR105626, 27SL90, 27SL105626, 27SR90626, 27SR105626, 27105NLH626, 27105S-LH-626, 27105NRH626, 27105S-RH-626, 2790NLH626, 2790-S-LH-626, 2790NRH626, 2790S-RH-626
