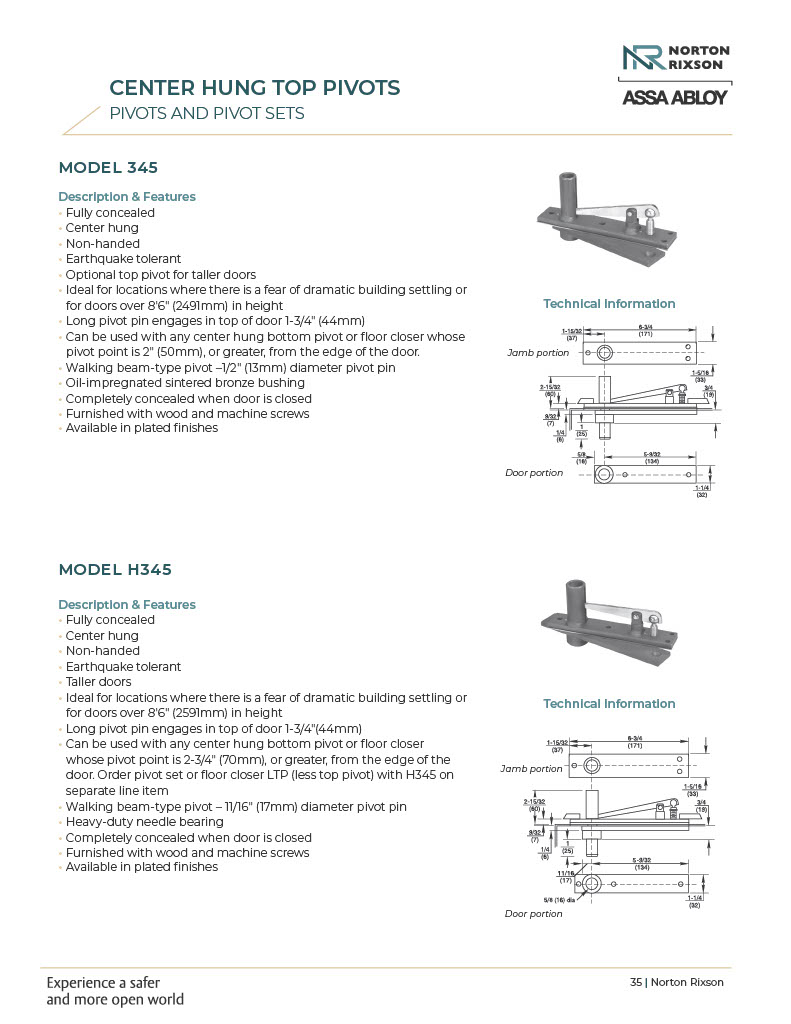

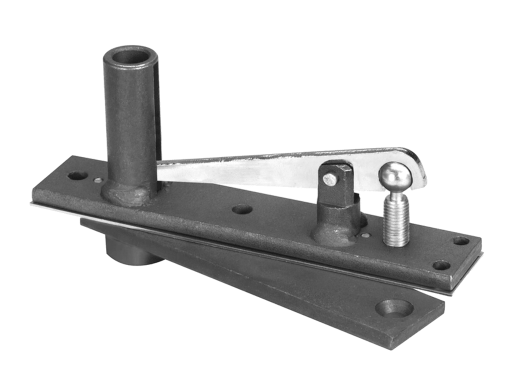

Norton Rixson 345 Center Hung Long Throw Pin Top Pivot

Norton Rixson *345 Center Hung Long Throw PinTopPivot*

Application:

Fully ConcealedCenter HungNon-handedEarthquake TolerantTaller DoorsLonger Throw Pin for Taller Doors Top Pivot

Description/Features:

Ideal for locations where there is a fear of dramatic building settling or for doors over 8'6" in heightLong pivot pin engages in top of door 1-3/4" (44mm)Can be used with any center hung bottom pivot or floor closer. Order pivot set or floor closer LTP (less top pivot) with 345 on separate line itemWalking beam-type pivot –1/2" (13mm diameter pivot pinOil-impregnated sintered bronze bushingCompletely concealed when door is closedFurnished with wood and machine screws

Model: Norton Rixson 345-619, 345-626, 345-613, 345-619, 345-626, 345-619, 345613, 345 613
