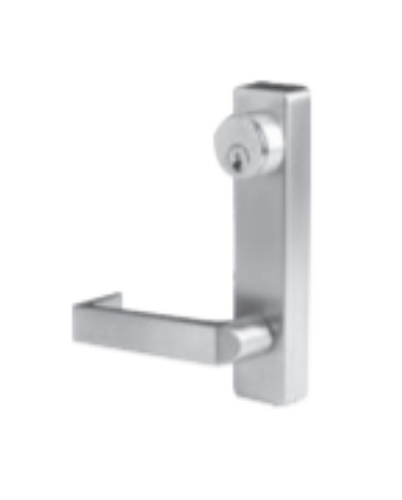

PDQ 4EN09 Narrow Stile Exit Device Storeroom Lever Escutcheon Trim

PDQ 4EN09 Narrow Stile Exit Device Storeroom Lever*Escutcheon Trim*

Function 4EN09- Entrance by knob or lever only when released by key. Key removable when locked.

Features and Benefits:

• Handing is field reversible.
• Heavy duty cast alloy (not formed steel) escutcheon that resists breakage and damage. It's built to last.
• price includes standard default cylinder
• The heavy duty trim thru-bolts directly into the exit device chassis capturing the door in between. The large surface area coverage on each side of the door makes for an almost indestructible installation. As an added bonus the design reduces the odds of the door being crushed during installation.
• A solid internal stop limits the degree of lever rotation and pressure on other parts of the unit. Device and doors enjoy a longer life.
• Innovative self-centering spring eliminates lever droop which is prevalent on other manufacturers devices as they age over time.
•  28-degree lever rotation that makes the door easier and quicker to open. The reduced travel requires less action to retract, greatly accommodating accessibility. - Unrivaled flexibility. Classroom to Storage and Storage to Classroom functions can quickly be accomplished using a simple inexpensive conversion kit.
•  Excellent for retrofits, installs into Von Duprin 98/99 Series door prep.
•  Assembled in the USA - Lancaster, PA.

Certifications, Compliances, Listings: - ANSI/UL10C and CAN/ULC-5104 Listed for 'Fire Exit Hardware' up to 3 hours for 4'0" x 8'0" maximum single, 8'0" x 8'0" maximum pairs. -  Certified to ANSI/BHMA A156.3-2008. - Lever designs comply with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for accessible and Usable Buildings. -  Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.

Most manufacturers heavy duty exit device trim is designed to just meet BHMA/ANSI standards, its heavy-duty in name only. At PDQ we don't skimp, we designed real heavy-duty trim that is long lasting and easier to operate, it feels rugged and operates with unmatched smoothness. 6EW trim stands up to the most abusive and heavy traffic applications while protecting the door, the device, and helping the user.

PDQ 4EN, 4EN09 PDQ, 4 EN PDQ, PDQ 4 EN09
