Product Details

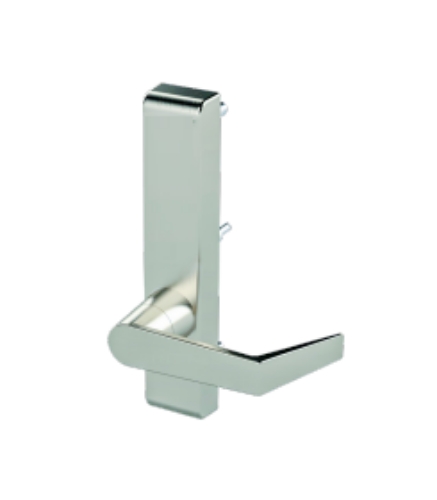

PDQ 6N02 Narrow Stile Exit Device Escutcheon Dummy Trim(Rigid Lever)
Function 6N02 - Entrance by trim when actuating bar isdogged(dummy trim).
Applicable Devices
- 6400R Narrow Rim Device.
- 6400V Narrow Surface Vertical Device.
- 6400C Narrow Concealed Vertical Device.
- 6300R Wide Stile Rim Device.
- 6300V Wide Surface Vertical Device.
- 6300C Wide Concealed Vertical Device.
- 6300M Wide Mortise Device (Except 03 function).
6N Features and Benefits:
Trimsare non-handed and use simple door prep based on a 2 hole bolt pattern with 7" centers, or a 4 hole bolt pattern with 7"x1-3/8" centers.
Narrowescutcheons work with both wide and narrow stile devices. Wide escutcheons work only with wide stile devices.
- Uses standard 1-1/8" mortise cylinder.
- Standard, SFIC, and other cylinders available.
- 6 Available lever styles.
- Finishes: 605, 606, 613, 622, 625, 626, 630.
- Escutcheon Size - 1 - 13/16" x 9".
- ADA Compliant.
