PDQ 5101-BC-PS Grade 1 Grade 1 Surface Door Closers, Backcheck, Pivot Stop Arm

*PDQ 5101-BC-PS Grade 1 Grade 1 Surface Door Closers, Backcheck, Pivot Stop Arm * PDQ offers a comprehensive line of door closers designed and manufactured to ensure superior performance and reliability. They offer the perfect combination of reliability, appearance, and durability. With a wide range of models and features, PDQ has a door closer for most applications.

Typical Applications: Aluminum Storefronts, Assisted Living,Government Facilities, Higher Education, Hospitality, Houses of Worship, Interior Office Doors, Multi-family, Offices, Retail.

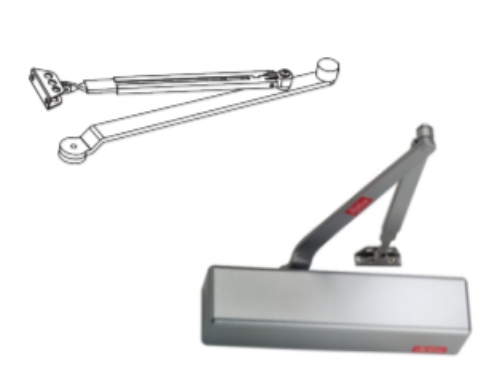

Pivot Stop Arm Features: - Designed to serve as a medium-duty door stop for situations where a door stop or overhead stop is not practical. -  Available in Regular and Top Jamb mounting. - Uses backcheck to slow the door and a stop integrated into the closer arm to limit the travel of the door. - Limits the travel of the door to a specific, templated angle. - Templating is available for opening angles from 85 to 110 degrees in 5-degree increments. -  Not available with hold open

FEATURES:

• Features a 1-1/2" diameter hardened steel piston.
• Fully featured architectural style door control.
• Full cover and flat design arm assembly provide both durability and aesthetically pleasing appearance in commercial and institutional applications.
• The closer is ideally suited for installation on wood or metal doors and frames. - The units are non-handed and fully adjustable from size one through six for maximum flexibility. - The standard tri-pack feature provides versatility to permit regular,top-jamb and parallel arm installations.
• A range of sprayed and architectural finishes are available to compliment any d'cor.
• Maximum 4" reveal for Top Jamb.

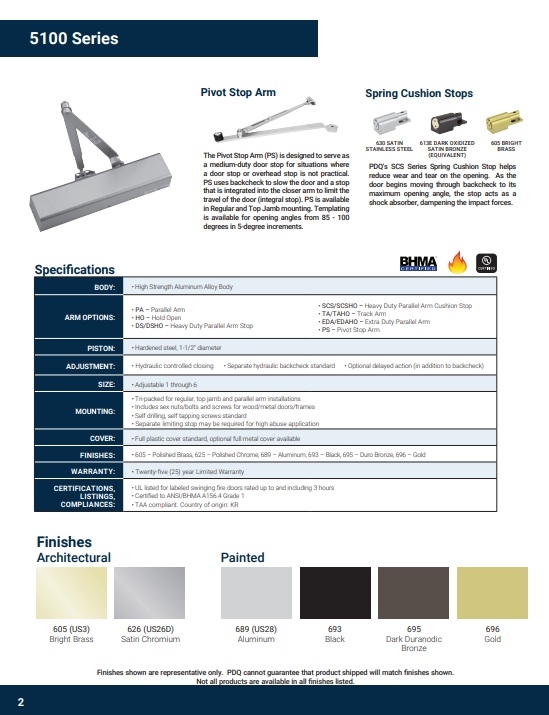

BODY: - High Strength Aluminum Alloy Body. ARM OPTIONS: - PA - Parallel Arm. - HO - Hold Open. - DS/DSHO - Heavy Duty Parallel Arm Stop. - RA - Regular Arm. - SCS/SCSHO - Heavy Duty Parallel Arm Cushion Stop. - TA/TAHO - Track Arm. - EDA/EDAHO - Extra Duty Parallel Arm. - PS - Pivot Stop Arm. PISTON: - Hardened steel, 1-1/2" diameter. ADJUSTMENT: - Hydraulic controlled closing. - Separate hydraulic backcheck standard. - Optional delayed action (in addition to backcheck). SIZE: - Adjustable 1 through 6. MOUNTING: - Tri-packed for regular, top jamb and parallel arm installations. - Includes sex nuts/bolts and screws for wood/metal doors/frames. - Self drilling, self tapping screws available. - Separate limiting stop may be required for high abuse application. COVER: - Full plastic cover standard, optional full metal cover available. COLOR & ARCHITECTURAL FINISHES: - 605 - Polished Brass, 625 - Polished Chrome, 689 - Aluminum, 693 - Black, 695 - Duro Bronze, 696 - Gold. WARRANTY: - Twenty-five (25) year Limited Warranty. CERTIFICATIONS, LISTINGS, COMPLIANCES: - UL listed for labeled swinging fire doors rated up to and including 3 hours. - Certified to ANSI/BHMA A156.4 Grade 1. - Meets requirements of the Buy American Act.
