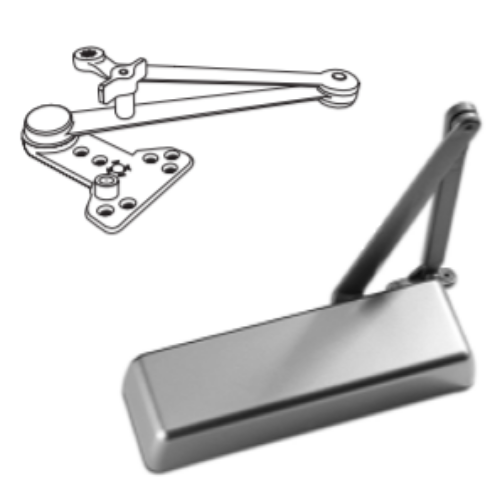

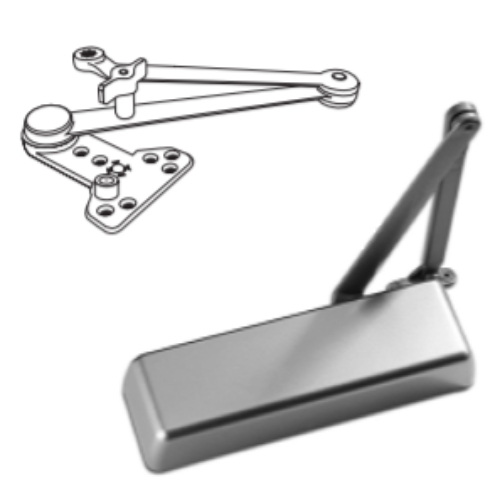

PDQ 7101-BC-DS-HO Grade 1 Institutional Closer, Backcheck, Door Saver (Limiting Stop) - Hold Open Arm

*PDQ 7101-BC-DS-HO Grade 1 Institutional Closer, Backcheck, Door Saver (Limiting Stop) - Hold Open Arm * PDQ offers a comprehensive line of door closers designed and manufactured to ensure superior performance and reliability. They offer the perfect combination of reliability, appearance, and durability. With a wide range of models and features, PDQ has a door closer for most applications.

The full metal cover option requires to specify handing (in comments box).

Closer Mounting: Parallel Arm (PUSH SIDE) mounting.

FEATURES:

• Heavy duty, fully featured architectural style door control.
• High strength cast iron body and forged steel arm assembly provide maximum durability and reliability in the most brutal environments.
•  Backcheck positioning valve feature provides a consistent backcheck snubbing range for regular, top jamb and parallel arm applications, preventing costly damage during forceful opening of the door.
• The 7100 series has a fully adjustable spring range that can be set to meet barrier free requirements.
• Maximum 3" reveal for Top Jamb.
• 5lb. Barrier Free Spring Setting for ADA Compliance.
• 6 Additional Spring Settings that Provide 17% More Adjustment Capability to Find that Sweet Spot for Optimal Door Closing Action.
• Barrier Free Settings Available on Both Regular/ Top Jamb and Parallel Arm Applications.

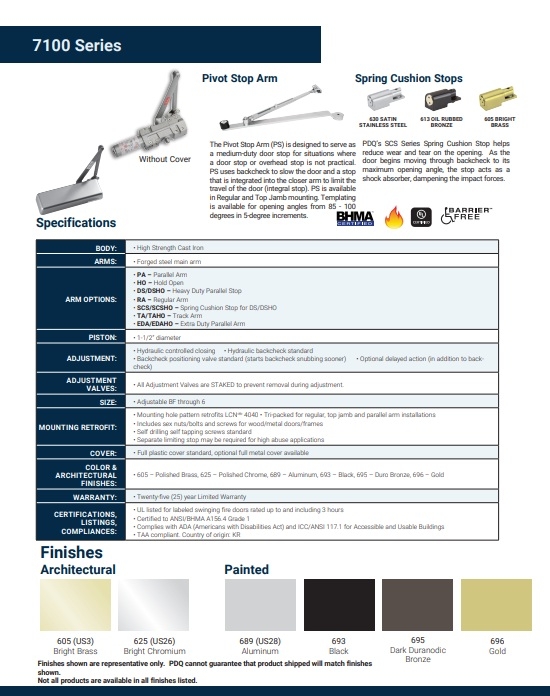

HANDING:  - Non-handed. OPERATION:  - Rack and pinion design. BODY:  - High Strength Cast Iron. ARMS:  - Forged steel main arm. - Flat style arm assembly. ARM OPTIONS:  - Hold open arm. - Track/Track Hold Open. - DS/DSHO heavy duty parallel stop arm. - Spring Cushion Stop for DS/DSHO. - EDA (Extra Duty PA Arm). PISTON:  - Hardened steel, 1-1/2" diameter. ADJUSTMENT:  - Adjustable controlled closing. - Separate hydraulic backcheck standard. - Backcheck positioning valve standard. - Separate sweep, latch, backcheck intensity and backcheck positioning valves. - Optional delayed action (in addition to backcheck). ADJUSTMENT VALVES:  - All Adjustment Valves are STAKED. FACTORY DEFAULT SPRING SETTING:  - Size 3. SIZE:  - Adjustable BF 1 through 6. MOUNTING:  - Mounting hole pattern retrofits LCN 4040. - Tri-packed for regular, top jamb and parallel arm installations. - Includes fasteners for hollow metal, wood or aluminum doors and frames. - Sex nuts and bolts standard. - Self drilling self tapping screws available. COVER:  - Full plastic cover standard (non-handed), optional full metal cover available (handed) FINISHES: . - 605 (US3) Polished Brass, 625 (US26) Polished Chrome, 689 (US28) Aluminum, 695 (N/A) Duro Bronze, 696 (US4) Gold. FINISHES - SPRING CUSHION STOPS:  - 605 (US3) Bright Brass (PVD), 613 (US10B) Oil Rubbed Bronze (PVD), 630 (US32D) Satin Stainless Steel.

Note: PVD (Physical Vapor Deposition) coated finishes offer outstanding resistance to wear, durability and corrosion.

CERTIFICATIONS, LISTINGS, COMPLIANCES:  - UL228 listed. - ANSI/UL 10C listed for labeled swinging fire doors rated for up to and including 3 hours. - Certified to ANSI/BHMA A156.4-2006 Grade 1.
