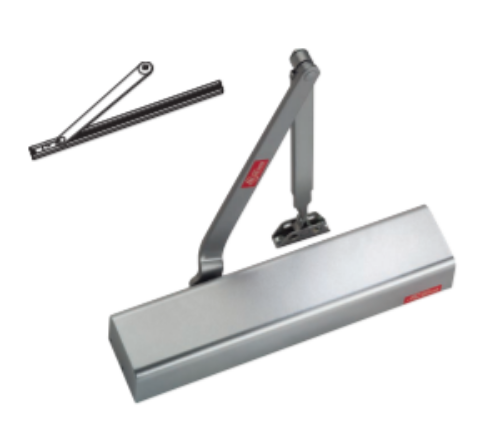

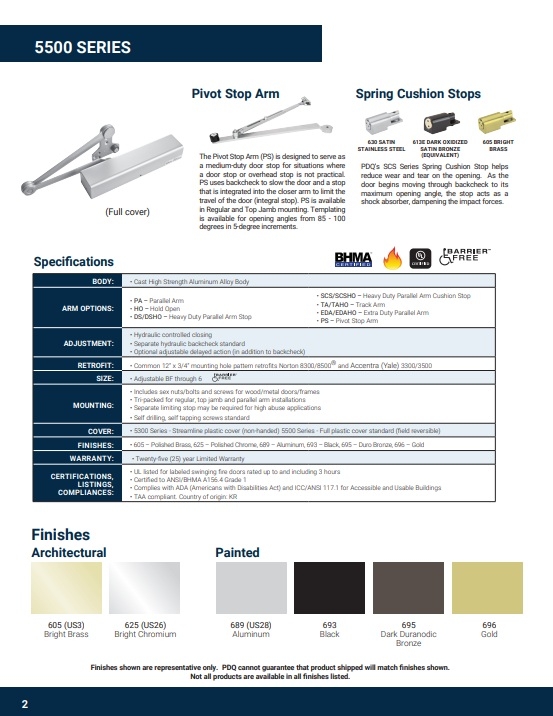

PDQ 5501-BC-TA Grade 1 Commercial Closer, Full Cover, Track Arm

PDQ 5501-BC-TA Grade 1 Commercial Closer, Full Cover, Track Arm

Features

• 1-1/4" diameter hardened steel piston.
• Heavy duty, fully featured architectural style door control.
•  6 Additional Spring Settings that Provide 17% More Adjustment Capability to Find that Sweet Spot for Optimal Door Closing Action.
• Available with modern streamline cover or full sized cover .
• Compact appearance and features meet the demands of institutional and commercial applications.
• The standard tri-pack, full range spring adjustment and common 12" x 3/4" mounting hole pattern make the 5300/5500 ideally suited for stocking distributors and retrofit applications.
•  Adjustable hydraulic backcheck prevents damage for uncontrolled door opening.
•  Perfect solution for a variety of applications requiring streamline architectural grade door controls.
•  Maximum 4" reveal for Top Jamb.

HANDING: Non-handed.

OPERATION:  Rack and pinion design.

BODY:  Cast high strength aluminum alloy.

ARM:  Stamped steel main arm. Flat style arm assembly.

ARM OPTIONS:  Hold open Arm. DS/DSHO heavy duty parallel stop arm. Track/Hold Open Arm. Spring Cushion Stop for DS/DSHO. EDA (Extra Duty PA Arm).

PISTON:  Hardened steel.

ADJUSTMENT:  Adjustable controlled closing. Separate hydraulic backcheck standard. Separate sweep, latch, and backcheck intensity valves. Optional adjustable delayed action.

SIZE:  Adjustable BF through 6. Factory preset to size 3.

MOUNTING: Common 12" x 3/4" mounting hole pattern retrofits Norton 8300, Yale 3300, DORMA 8600 (for more comparisons, see cross reference table. Tri-packed for regular, top jamb and parallel arm installations. Fasteners furnished for hollow metal, wood or aluminum doors and frames. Sex nuts and bolts standard. Self-drilling, self-tapping screws available.

COVER:  Streamline plastic cover standard (non-handed).

FINISHES:  689 Aluminum, 693 Black, 695 Duro Bronze, 696 Gold, 605 Polished Brass, 626 - Satin Chrome.

CERTIFICATIONS, LISTINGS, COMPLIANCES:  UL and ULC listed. UL 10C listed. Certified to ANSI/BHMA A156.4-2006 Grade 1. Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. Meets requirements of the Buy American Act

WARRANTY: Twenty-five (25) year limited warranty.

Model: PDQ 5500, PDQ 5501, PDQ 5500 TA, PDQ 5501 TA, PDQ 5501BCTA,  5501PDQ, 5500 PDQ, 5500TA PDQ, 5500BCTA PDQ, 5501BCTA PDQ, 5501TA PDQ, 5501TA, 5500TA, 5500BCTA,5501TA, 5541TA, PDQ 5541TA, PDQ 5541BCTA, 5541BCTA, PDQ5501, PDQ5501TA, PDQ5501BCTA
