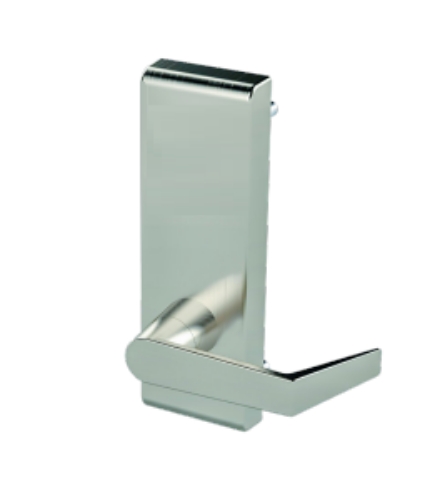

PDQ 6W02 Wide Stile Exit Device Escutcheon, Dummy Trim (Rigid Lever)

PDQ 6W02 Wide Stile Exit Device Escutcheon Dummy Trim(Rigid Lever)

Function 6W02 - Entrance/Pull only when device is dogged. Fixed lever.

Applicable Devices:

• 6300R Wide Stile Rim Device.
• 6300V Wide Surface Vertical Device.
• 6300C Wide Concealed Vertical Device.
• 6300M Wide Mortise Device (Except 03 function).

6W Features and Benefits:

Trimsare non-handed and use simple door prep based on a 2 hole bolt pattern with 7" centers, or a 4 hole bolt pattern with 7"x1-3/8" centers.

Narrowescutcheons work with both wide and narrow stile devices. Wide escutcheons work only with wide stile devices.

• Works only with 6300 wide device.
• Uses standard 1-1/8" mortise cylinder.
• Standard, SFIC, and other cylinders available.
• 6 Available lever styles.
• Finishes: 605, 606, 613, 622, 625, 626, 630.
• Escutcheon Size - 3" x 9".
• ADA Compliant.
