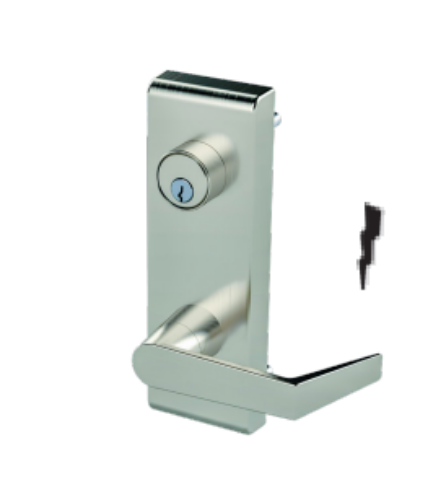

PDQ 6W99 Wide Stile Exit Device Escutcheon, Electrified Storeroom

PDQ 6W99 Wide Stile Exit Device Escutcheon - Electrified*Storeroom*

Function 6W99 - Locked/Unlocked electronically. - FS/FSF configurable. Entry by key. - Key does not change lock state.

Applicable Devices

• Works only with 6300 wide deviceץ
• 6300R Wide Stile Rim Device.
• 6300V Wide Surface Vertical Device.
• 6300C Wide Concealed Vertical Device.
• 6300M Wide Mortise Device (Except 03 function).

6W99 Features and Benefits:

Operation: Field selectable operation - Fail Safe (Unlocked when power removed). - Fail  Secure (Locked when power removed). - Key allows entry but does not change  state of lock.

Features: - Motorized locking/unlocking. - Field changeable from Fail Secure (Default) to Fail Safe. - AC or DC input voltage.  - Works with rim, surface vertical rod and concealed vertical rod devices. - Two (2) year warranty. - Designed and assembled in the USA, Lancaster, PA.

Electrical Specifications: - Non-polarized power leads.  - Power requirements: 12-24VDC/VAC - 10%. - Average in-rush current: 12-24VDC/VAC: 1A for 1 second. - Average holding current: 12-24VDC: 5mA after 30 seconds.  12-24VAC: 15mA after 30 seconds. - Power must be applied for a minimum of 5 seconds.

• Uses standard 1-1/8" mortise cylinder -  Standard, SFIC, and other cylinders available -  6 Available lever styles
• 08/09 Function conversion kit factory installed -  Finishes: 605, 606, 613, 622, 625, 626, 630 -  Escutcheon Size - 3" x 9"
• ADA Compliant
