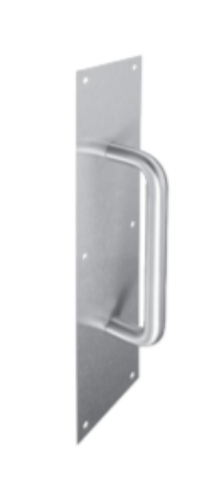

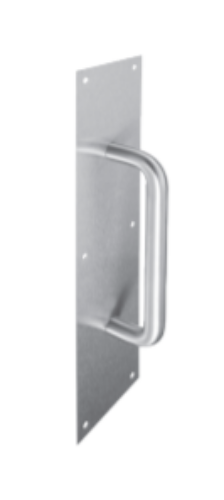

PDQ 865-2D, 6" X 16" Plate Size, 3/4" Round Straight Pull - 8" CTC

About this item

PDQ 86-2-2D, 6" X 16" Push Plate, 3/4" Round Straight Pull - 8" CTC

SPECIFICATIONS:

PLATE SIZE:
- 6" X 16" Plate Size (Ref 965 Series Push Plate).
Mounting Options:
1 - TYPE 1 Thru Bolt for Metal, Composite or Wood Door (Default).
12 - TYPE 12 Thru Bolt for Metal, Composite or Wood Door, Decorative Head.
6 - TYPE 6 Surface Concealed for Metal Door (Door Reinforcement by Others).
6R - TYPE 6R Surface Concealed for Metal Door (Rivnut).
8 - TYPE 8 Surface Concealed for Wood Door (Knife Thread Insert).
PULL SERIES:
2C - 3/4" DIA, 8" Center to Center.
OVERALL PROJECTION:
- 2-5/16".
THICKNESS:
- 0.050".
PLATE MOUNTING FASTENERS:
-  #6 x 5/8 OH PH SMS.
FINISHES:
-  630 (US32D) Satin Stainless Steel (Grade 304).
-  Available with Antimicrobial Coating 630 (US32D) only.

PDQ 8652D, 8652D, 86-5-2D, PDQ 86-5-2D, 86-5-2D PDQ, 8652D PDQ, PDQ8652D, 8652DPDQ, PDQ86, 86PDQ, PDQ PULL PLATES

Resources

• PushPlates-Pulls-Brochure.pdf
