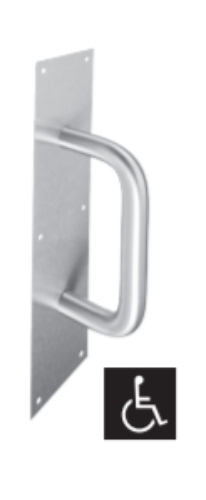

PDQ 866-H3E, 8" x 16", Plath Size, 1" Round Straight Pull - 10" CTC

About this item

PDQ 86-6-3E, 8" x 16" Plath Size, 1" Round Straight Pull - 10" CTC

SPECIFICATIONS:

PLATE SIZE:
- 8" x 16" (Ref 962 Series Push Plate).
Mounting Options:
Standard - Type 1HD (default).
6HD. 6RHD. 8 HD. 12HD. 15HD.
PULL SERIES:
H3D - 1" DIA, 10" Center to Center.
OVERALL PROJECTION:
- 3-9/16".
THICKNESS:
- 0.050".
PLATE MOUNTING FASTENERS:
-  #6 x 5/8 OH PH SMS.
FINISHES:
- 630 (US32D) Satin Stainless Steel (Grade 304).
-  Available with Antimicrobial Coating.


PEQ 866H3E, 866H3E, 86-6-H3E, PEQ 86-6-H3E, 86-6-H3E PEQ, 866H3E PEQ, PEQ866H3E, 863H3EPEQ, PEQ86, 86PEQ, PEQ PULL PLATES

Resources

• PushPlates-Pulls-Brochure.pdf
