PDQ 9301-689-EM, 8' Electrified Mullion, Hex Key Removable

PDQ 9301-689-EM, 8' Electrified Mullion, Hex Key Removable

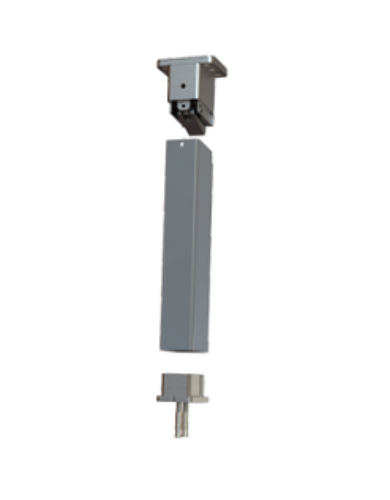

9301-689-EM:Mullion, removable by use of hex key, 8' and under opening height (can be cut down to non standard opening height), Factory electrified routing prep using Industry standard molex connectors.

Specifications:

9300 Mullions SERIES Mullion Head/Foot brackets:  Cast Stainless Steel Tube.Dimensions:

  Powder Coated 2" x 3" Steel - 3/16" Wall.

Strike:     - 639080 Strike included for Fire Labeled.    - Strike not included for panic mullion. Use supplied strike with exit device.

Size:8' or 10' lengths - Can easily be cut to shorter size in field. Finish:   Powder Coated 689 (Aluminum) - can be painted.

Electrified Options:  Wire routing w/ plugs.

Warranty:  One (1) year limited warranty. Certifications: Compliances: Listings:

   - Fire model is 3 hour fire labeled for pairs up to and including 8' x 8' (With 6300RF/6400RF Rim Device). Fire Rated mullion listed only when used with PDQ's 6300/6400 Fire Rated Devices. Use with any other device will void UL Fire Rating.

   - Meets requirements of the BAA as a COTS product manufactured in the United States.

Model: PDQ 9301, PDQ 9301-689-EM, 9301, 9301 689 EM, 9301689EM
