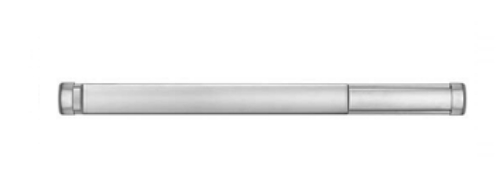

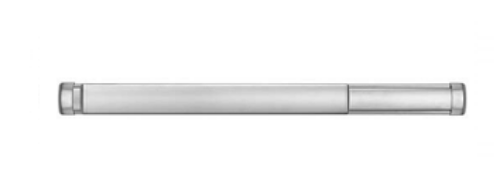

Precision 671DR-3-630 Wide Stile Rigid Dummy Touchbar, Stainless Steel - 36"

About this item

The Precision 671DR-3-630 is a wide stile rigid dummy touchbar from PHI Precision Hardware's Apex 2000 Series, 36-inch length, finished in 630 Satin Stainless Steel (US32D). The 671DR is specified for the inactive leaf of a paired door opening where a matching touchbar appearance is required but no active exit device latch mechanism is installed on that leaf. The touchbar is rigid and does not retract any bolt. American Locksets is an authorized dormakaba PHI Precision dealer stocking the 671DR-3-630 with same-day shipping and free shipping on orders over $300.

Precision 671DR: What a Rigid Dummy Touchbar Does and Where It Goes

On a pair of doors with active exit devices, both leaves typically need to present a consistent hardware appearance. In many paired-door applications, only one leaf is the active egress leaf with a functioning exit device. The second leaf is the inactive leaf, held closed by flush bolts or a coordinator-controlled sequence, and it does not need its own active latch mechanism.

The 671DR rigid dummy touchbar installs on that inactive leaf. It provides the visual appearance of an Apex 2000 Series exit device touchbar without any mechanical latch or bolt function behind it. The touchbar is fixed and does not depress or retract anything. This is the key distinction: the 671DR is not a functional exit device. It is trim hardware only, used to create a visually matched pair of doors where both leaves appear to have matching exit hardware while only one is mechanically active.

This is a common specification in schools, hospitals, government buildings, and commercial lobbies where aesthetics require matching touchbars across both leaves but building code or the hardware schedule only requires a functioning exit device on the active leaf.

If the installation requires the inactive-leaf touchbar to be operable for push/pull door operation as a pull handle, specify ANSI Function 02 Dummy Trim instead of the 671DR. The 671DR rigid dummy provides appearance matching only, not push/pull lever functionality.

Precision 671DR-3-630 Specifications

• SKU: 671DR-3-630

• Series: PHI Precision Apex 2000 Series, Dummy Pushbar Exit Devices. Also referenced in the 671DR - N673DR Dummy Touchbars family

• Device Type: Rigid Dummy Touchbar. Touchbar is fixed and non-functional

• Device Length: 36 inch (3-foot device). For 4-foot version specify 671DR-4

• Door Width Coverage: 36-inch device for doors up to 36 inches wide

• Physical Appearance: Wide stile pushpad. Matches the Apex 2000 Series active exit device profile and appearance

• Base Material: Stainless steel construction

• Finish: 630 Satin Stainless Steel (US32D)

• Fire Rated: Not fire rated

• Trim Included: No trim included

• Manufacturer: PHI Precision Hardware (dormakaba)

671DR vs. 671DR-4 and Active Dummy Trim Options

The 671DR is the rigid dummy touchbar in two lengths: 671DR-3 for 3-foot (36-inch) doors and 671DR-4 for 4-foot (48-inch) doors. Both are rigid and non-functional.

For applications where the inactive leaf needs a touchbar that depresses and acts as a push/pull handle without an active latch (ANSI Function 02 dummy), Precision offers separate dummy trim options in the 2000 Series catalog. For inactive leaves requiring a micro switch for monitoring touchbar depression without latch operation, the TS672DA active dummy touchbar with micro switch is the correct specification.

Confirm the inactive-leaf requirement, door width, and finish with the active exit device finish before ordering to ensure a matched hardware set across both leaves.
