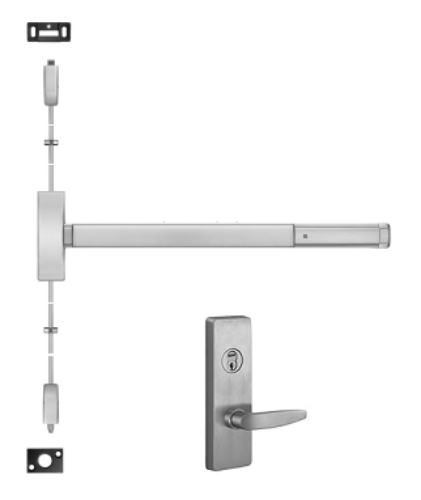

Precision 2208-4908B Apex Vertical Rod Exit Device - Key Controls Lever/Knob, with 4908B Trim, Handed
Product Details
Precision 2208-4908B Apex Vertical Rod Exit Device - Key Controls Lever/Knob, with 4908B Trim - Wide Stile,*handed*
Description and Features:
Apex and Olympian Series Wide Stile Trim, Key Locks/UnLocks Lever, Less Cylinder, B Lever Design,*The trim is handed.*

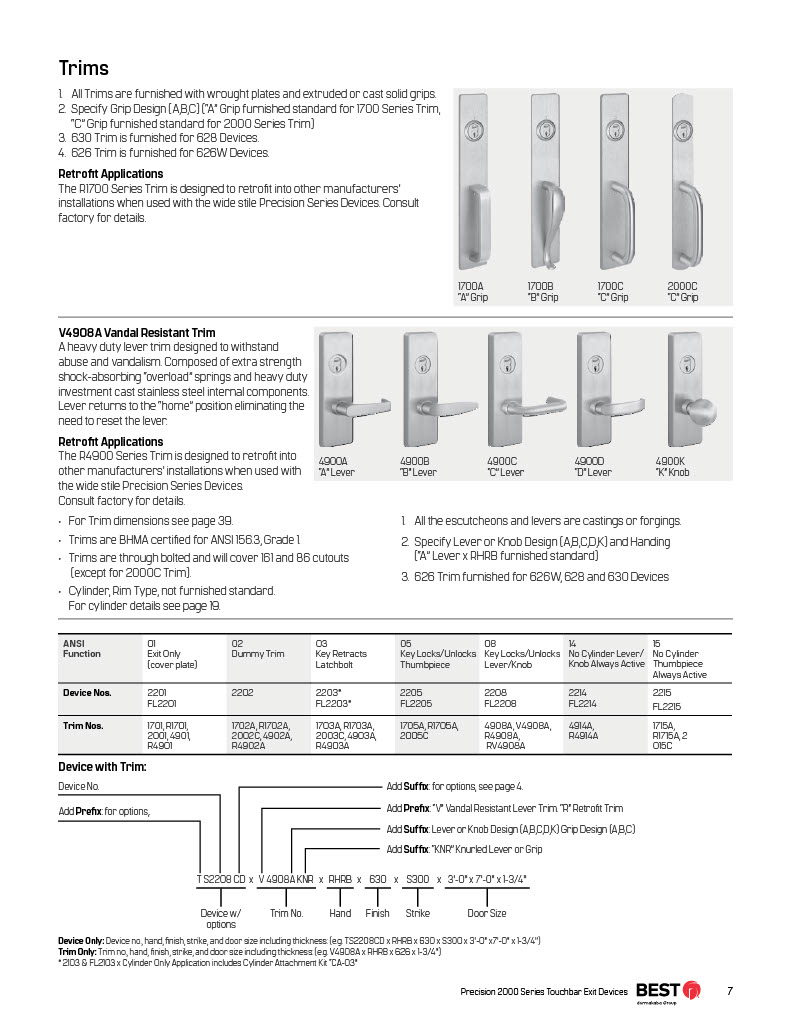

V4908A Trim: Vandal Resistant Trim A heavy duty lever trim designed to withstand abuse and vandalism. Composed of extra strength shock-absorbing "overload"springs and heavy duty investment cast stainless steel internal components. Lever returns to the "home" position eliminating the need to reset the lever.Fasteners:
Furnished standard with machine screws and full thread wood/sheet metal screws. .
Door Sizes:
Width:
36" - 2'-7" to 3' Door Width
48"- 3'-1" to 4' Door Width
( If Required, cut to size in the field)
Height:7'
- For 7’-0" doors
8'- For 8’-0" door Heights
10'- For 10’-0" door Heights
12'- For 12’-0" door Heights
(Note: 12’-0" top rod is Not available in “FL" fire rated option.)

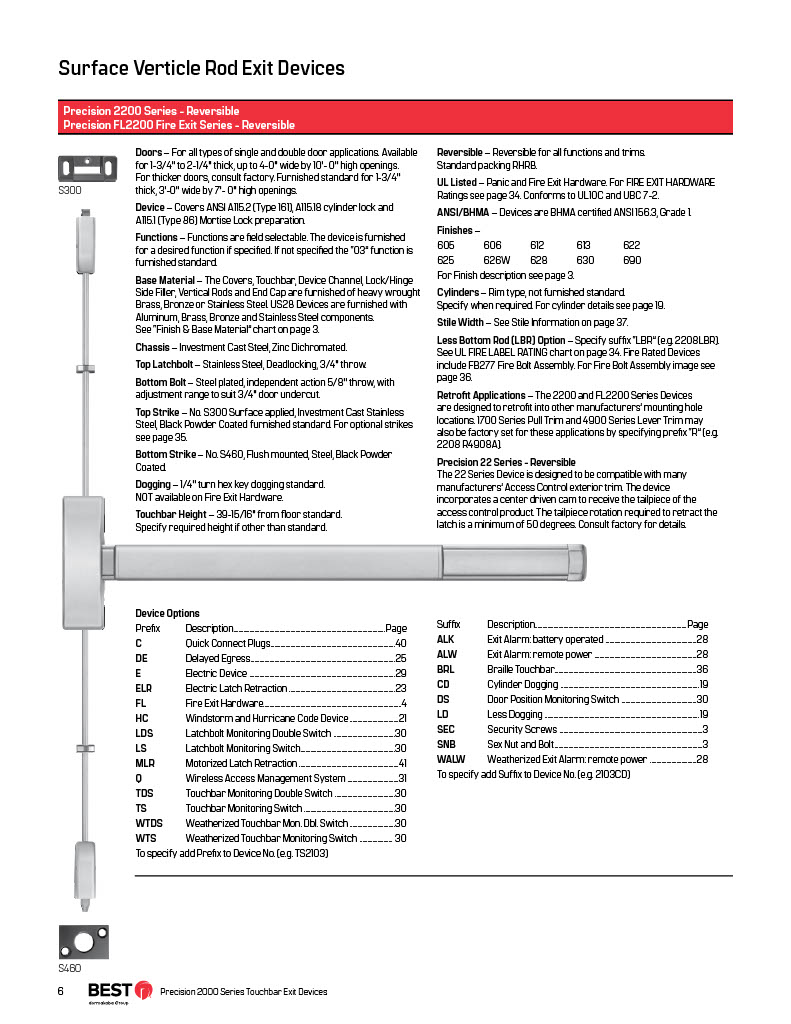

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis:Investment Cast Steel, Zinc Dichromated.
Top Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.
Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.
Top Strike:No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard. For optional strikes see page 34.
Bottom Strike: No. S460, Flush mounted, Steel, Black Powder Coated.
Dogging:1/4" turn hex key dogging standard.
Reversible: Reversible for all functions and Trims. Standard packaging RHRB.
UL Listed: UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.
Model: Stanley-Precision 2208-4908B-605-36, 2208-4908B-606-36 , 2208-4908B-612-36 , 2208-4908B-630-36 , 2208-4908B-613-36, 2208-4908B-625-36 2208-4908B60536, 2208-4908B606-36 , 2208-4908B61236 , 2208-4908B630-36 , 2208-4908B613-36, 2208-4908B62536, 2208-4908B-605-48, 2208-4908B-606-48 , 2208-4908B-612-48 , 2208-4908B-630-48, 2208-4908B-613-48, 2208-4908B-625-48, 2208-4908B60548, 2208-4908B606-48 , 2208-4908B61248 , 2208-4908B630-48 , 2208-4908B613-48, 2208-4908B62548, 2208-4908B-630, 2202-630, 2208-4908B-630, 2208-4908B-630, 2214-630, 2215-630
