Product Details

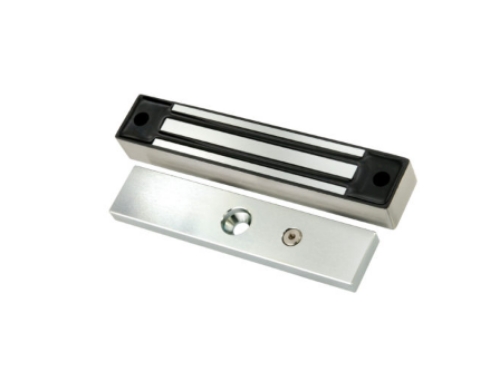

Rofu 8403F-12 Micro Magnet - Front Mounting - 300LB Holding Force
8403F-12 Front/Face mount is recommended for cash drawer standard top or front mount installation.
Dimensions: 6 11/16″(L) x 1 1/4″(H) x 15/16″(W) (hole center to center 5 29/32″)
Armature Dimension: 6″(L) x 1 1/4″(H) x 3/8″(W)
Holding Force: 300 lbs
Fail Safe: Releases instantly when power is disconnected
Fail Alarm: May be released upon activation of fire alarm
Weather resistant cable connection
No residual magnetism
RoHS Compliant
This model is not recommended for life safety or high security applications
Housing: Attractive, heavy duty nickel plated steel
All units are 12VDC
Current Draw: 315mA @ 12VDC
Mounting hardware included with each unit
Lifetime Warranty
