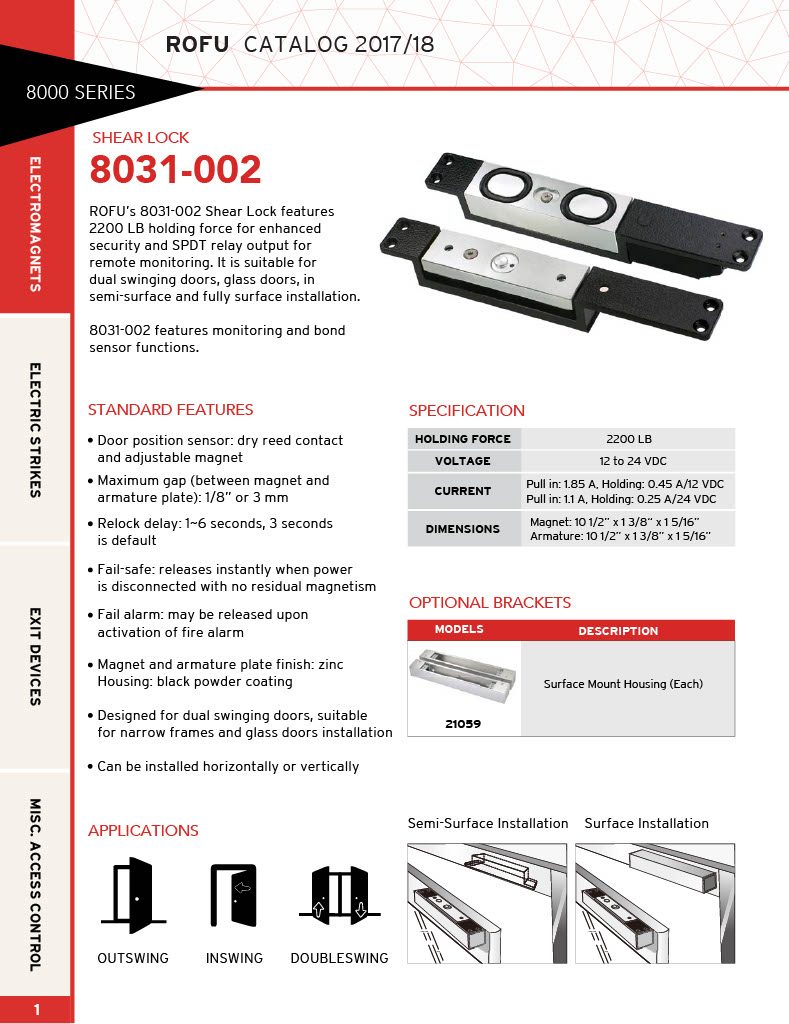

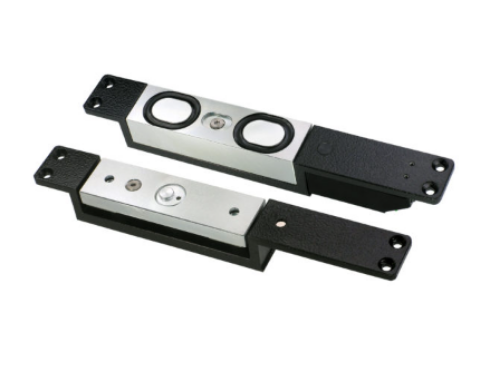

Rofu 8031-002 Mini Shear Lock - Monitored - Motise/Surface Mount - 1200LB Holding Force
Product Details
Rofu 8031-002 Mini Shear Lock - Monitored - Motise/Surface Mount - 1200LB Holding Force
Features & Description:
Holding Force: 2000lbs
Dimensions: 10.5″ (L) x 1 3/8″ (W) x 1 5/16″ (D)
Voltage: 12vdc / 24vdc field selectable
Position Sensor: Dry reed contact and adjustable magnet
Maximum Gap (between mag and armature plate): 1/8″ or 3mm
Relock delay: 1-6 Seconds, 3 Seconds is default
Fail Safe: Releases instantly when power is disconnected
Fail Alarm: May be released upon activation of fire alarm
Finish: Magnet and Armature Plate, zinc plated – The housing is black powder coated
Current draw: Pull In: 1.8A at 12vdc / 1.1A at 24vdc
Holding 0.5 at 12vdc / 0.32 at 24vdc
Designed for dual swinging doors
Can be installed horizontal or vertical
No residual magnetism
Limited 36 Month Warranty on this Specialty magnetic lock
