Roton 780-053 HD 95" Half Surface Continuous Geared Hinge

Hager-780-053
Hager-780-053
naxt
prev

Product Details

Half Surface - Retrofit  -For Doors of any Material

HD: Heavy Duty for high frequency doors or heavy medium frequency doors

Hinge Length:95" (241.3 cm)

Door Screws:9

Jamb Screws:19

Clearance:

5/32" (4 mm) minimum recommended hinge side plus standard lockside clearanceFasteners:Dril-Kwik

screws and Sex boltsLength Options:Standard and Custom

Door Reinforcement:None required

Frame Reinforcement:None required to 200 lbs. Heavier weight use 16 gauge channel

Fire Rating:Up to 3 hr. metal and 90 min. wood composite (with studs)

Special Features:

Frame leaf alignment rib for proper hinge location

Security molding

1/8" (3 mm) inset

Roton 780-053 HD 95" Half Surface Continuous Geared Hinge

SKU: 780053HD95

In Stock
Picture for manufacturer Hager
icon Chat

$280.77

Finish *

Model *

Oversized item, extra shipping charge may be added

About this item

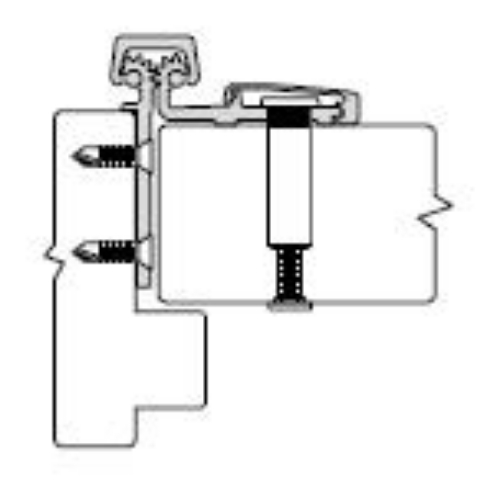

This model has the frame leaf concealed between the rabbet of the frame and the edge of the door. The door leaf is mounted to the face of the door with sex bolts (thru-bolts) or screws.

Resources

No resources added to this product.

Half Surface - Retrofit  -For Doors of any Material

HD: Heavy Duty for high frequency doors or heavy medium frequency doors

Hinge Length:95" (241.3 cm)

Door Screws:9

Jamb Screws:19

Clearance:

5/32" (4 mm) minimum recommended hinge side plus standard lockside clearanceFasteners:Dril-Kwik

screws and Sex boltsLength Options:Standard and Custom

Door Reinforcement:None required

Frame Reinforcement:None required to 200 lbs. Heavier weight use 16 gauge channel

Fire Rating:Up to 3 hr. metal and 90 min. wood composite (with studs)

Special Features:

Frame leaf alignment rib for proper hinge location

Security molding

1/8" (3 mm) inset

Hager-780-053
Roton 780-053 HD 95" Half Surface Continuous Geared Hinge

Product code: 780053HD95

In Stock

$461.87

$280.77

Hager-780-053
Roton 780-053 HD 95" Half Surface Continuous Geared Hinge

Product code: 780053HD95

In Stock

$461.87

$280.77
