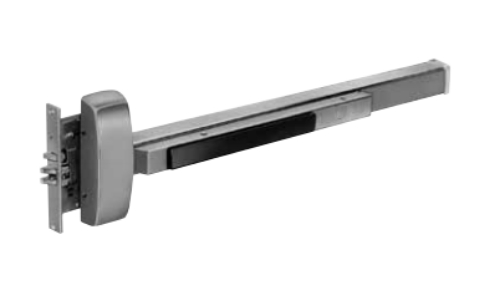

Sargent 12-8913G-32D Fire Rated Mortise Lock Exit Device - 48" - Classroom Function - Less Trim - Satin Stainless Steel
Product Details
Sargent 12-8913G-32D Fire Rated Mortise Lock Exit Device - 48" - Classroom Function - Less Trim - Satin Stainless Steel
UL Fire Label Exit Device
Door Width:for 43" to 48" door widths, No cutting required for 48" door
Designed for standard width stile applications on wood and metal doors Concealed single point guarded latching for additional security Single door applications Double door applications with Vertical Rod Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedDoor TypesWood or metal 1-3/4" (44 mm) minimum thickness.
StrikeC908 Standard Black Nylon Coated – ANSI Prep A115.1
Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts
Latch BoltBrass Nickel Plated, 3/4" (19mm) throw, anti-friction
Guarded/DeadLatchBrass Nickel Plated, sliding type
Device Centerline from Finished Floor 41" (1041mm) for Standard Applications
Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)
Projection Pushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)
