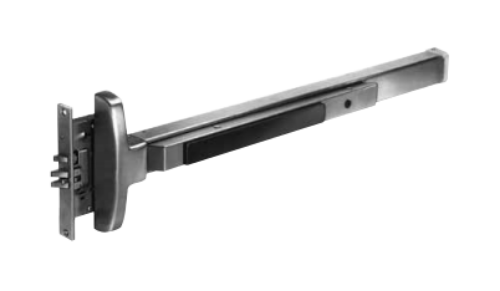

Sargent 8315F-32D Narrow Design Mortise Lock Exit Device - 36", Passage Only - Less Trim

Product Details

Sargent 8315F-32D Narrow Design Mortise Lock Exit Device*- 36",* Passage Only - Less Trim

Door Width:  for 33" to 36" door widths, No cutting required for 36" door

  • Designed for standard width stiles with a narrow design look

  • Through-bolted trim for quiet operation and security

  • Single door applications

  • Double door applications with Mortise Lock x Vertical Rod Device

  • UL Fire and Panic listed

  • Devices are ANSI A156.3 - Grade 1

Door TypesWood or metal 1 3/4" (44mm) minimum thickness.

StrikeC908 Standard Black Nylon Coated – ANSI Prep A115.1

Dogging FeatureHex key dogging standard on non fired rated devices

Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise(sex) nuts

Latch BoltBrass Nickel Plated, 3/4" (19mm) throw, anti-friction

Guarded/DeadlatchBrass, sliding type

Device Centerline from Finished Floor  41" (1041 mm) for Standard Applications

Center Case Dimensions8-5/16" (211mm) x 1-1/16" (27mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)



Sargent 8315F-32D Narrow Design Mortise Lock Exit Device - 36", Passage Only - Less Trim

SKU: 8315F-32D

In Stock

Handing *

$2,331.86

About this item

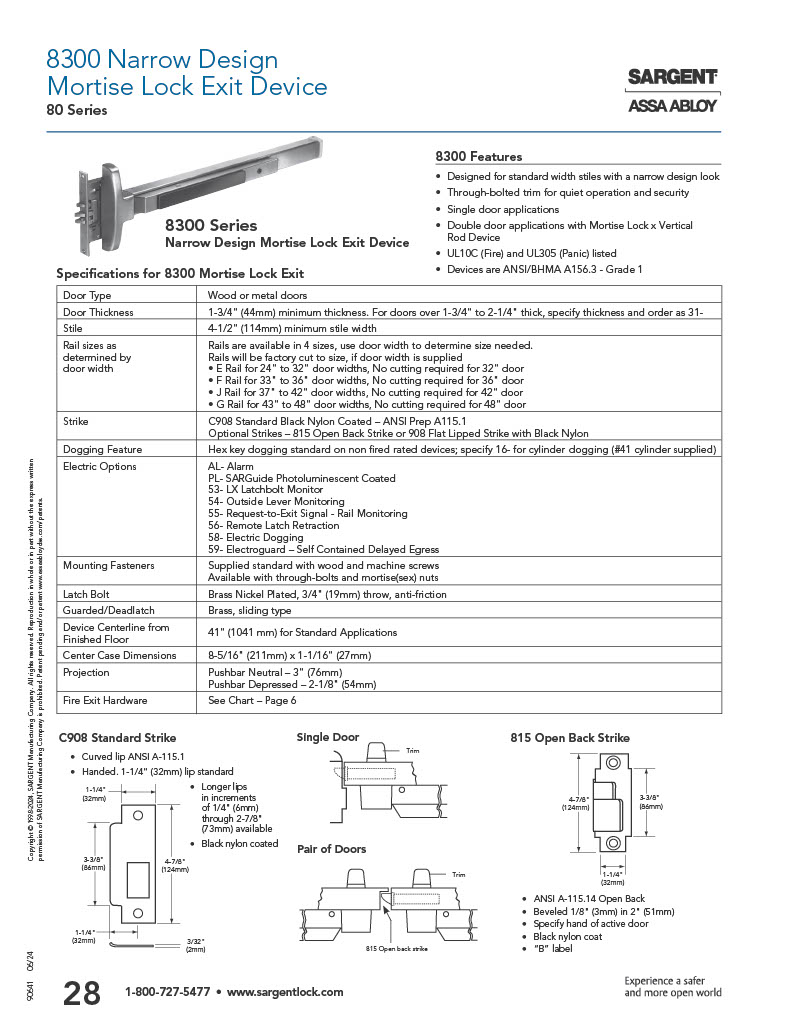

SARGENT manufactures a full line of exit devices that provide the best combination of strength, simplicity, aesthetics and innovation. The SARGENT 8300 Series Exit Device is a narrow design, push rail style, mortise lock exit device.

Sargent 8315F-32D Narrow Design Mortise Lock Exit Device*- 36",* Passage Only - Less Trim

Door Width:  for 33" to 36" door widths, No cutting required for 36" door

  • Designed for standard width stiles with a narrow design look

  • Through-bolted trim for quiet operation and security

  • Single door applications

  • Double door applications with Mortise Lock x Vertical Rod Device

  • UL Fire and Panic listed

  • Devices are ANSI A156.3 - Grade 1

Door TypesWood or metal 1 3/4" (44mm) minimum thickness.

StrikeC908 Standard Black Nylon Coated – ANSI Prep A115.1

Dogging FeatureHex key dogging standard on non fired rated devices

Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise(sex) nuts

Latch BoltBrass Nickel Plated, 3/4" (19mm) throw, anti-friction

Guarded/DeadlatchBrass, sliding type

Device Centerline from Finished Floor  41" (1041 mm) for Standard Applications

Center Case Dimensions8-5/16" (211mm) x 1-1/16" (27mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)



8300new
Sargent 8315F-32D Narrow Design Mortise Lock Exit Device - 36", Passage Only - Less Trim

Product code: 8315F-32D

In Stock

$3,755.00

$2,331.86

8300new
Sargent 8315F-32D Narrow Design Mortise Lock Exit Device - 36", Passage Only - Less Trim

Product code: 8315F-32D

In Stock

$3,755.00

$2,331.86
