Product Details

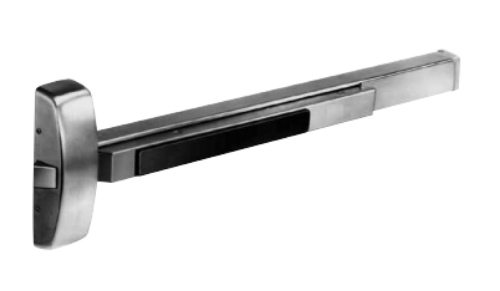

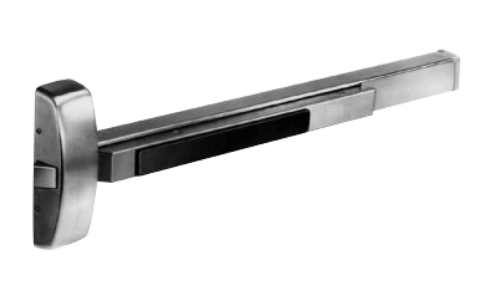

Sargent 12-8888-E(8810)Fire Rated Rim Exit Device - Exit Only**- 32"**
UL Fire Label Exit Device
Foor Doors:24" through 32" (61cm through 81cm)
Device & trim sold separately; easy to mix and match
Designed for standard width stile applications on wood and metal doors
Single and double door applications with a mullion
For DoorsWood or metal. 1-3/4" (44 mm) minimum thickness
MountingSupplied standard with wood and machine screws Available with through-bolts and mortise nuts
Chassis CoverCold drawn stainless steel, brass or bronze with ANSI/BHMA Finishes
ChassisNonferrous alloy (Panic) Ferrous alloy (Fire Rated)
RailsRoll Formed Stainless Steel, Brass or Bronze with ANSI/BHMA Finishes
HandNon-handed
LatchboltStainless steel, 3/4" (19mm) throw
Strike649 Strike supplied standard for panic & fire rated openings
Devices are ANSI A156.3 - Grade 1
UL Fire and Panic listed
Device is non-handed
ANSI/BHMA architectural finishes
Model:Sargent 12-8888E, 12-8810E, 12-8888-E-32D , 12-8888-E-10, 12-8888-E-10B, 12-8888-E-3, 12-8888-E-32, 12-8888-E-4
