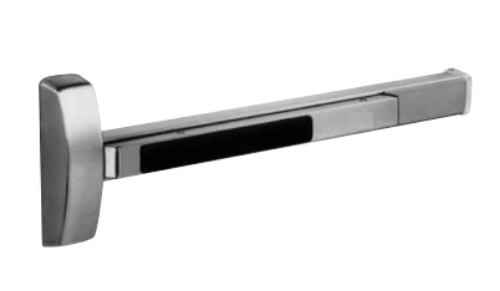

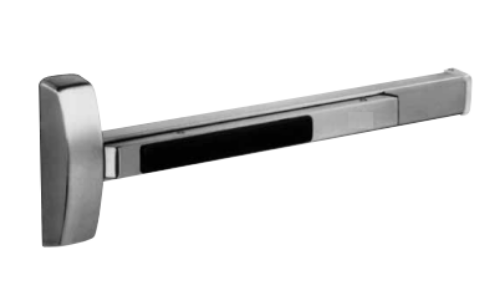

Sargent 12-MD8610-G Fire Rated Concealed Vertical Rod Exit Device For Metal Doors - Exit Only - 48"

Sargent 12-MD8610-G Fire Rated Concealed Vertical Rod Exit Device For Metal Doors - Exit Only - 48"

UL Fire Label Exit Device

Door Width: for 43" to 48" door widths, No cutting required for 48" door

 Designed for standard width stile applications on wood doors Concealed rods offer security Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listed

Door TypesWood, 1-3/4" (44mm) minimum thickness

Strike650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)

MountingFasteners Supplied standard with wood screws

Top BoltStainless steel

Device Centerline from Finished Floor 41" (1041mm) for Standard Applications,  38" (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)

Model:Sargent 12-Md8610G, 12-Md-8610-G, 12-Md-8610-G-32D, 12-Md8610G-10B,  12-Md8610G10B, Md8610G32D
