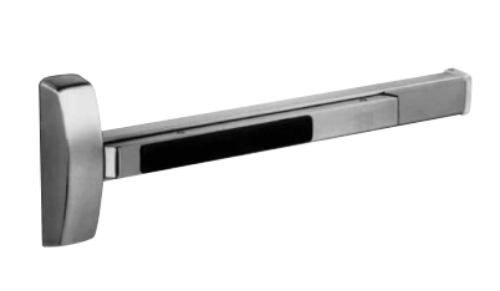

Sargent 12-MD8610F Fire Rated Concealed Vertical Rod Exit Device For Metal Doors - Exit Only - 36"
Product Details
Sargent 12-MD8610F Fire Rated Concealed Vertical Rod Exit Device For Metal Doors - Exit Only - 36"
UL Fire Label Exit Device
Door Width: for 33" to 36" door widths, No cutting required for 36" door
Designed for standard width stile applications on Hollow Metal doors Concealed rods offer security and aesthetics Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedDoor TypesMetal Doors, 1-3/4" (44mm) minimum thickness
Strike650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
Mounting*Fasteners*Supplied standard with wood screws
Top BoltStainless steel
Device Centerline from Finished Floor 41" (1041mm) for Standard Applications, 38" (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used
Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)
ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)
Model:Sargent 12-Md8610F, 12Md8610F, 12-Md-8610-F-32D, 12-Md8610F-10B
