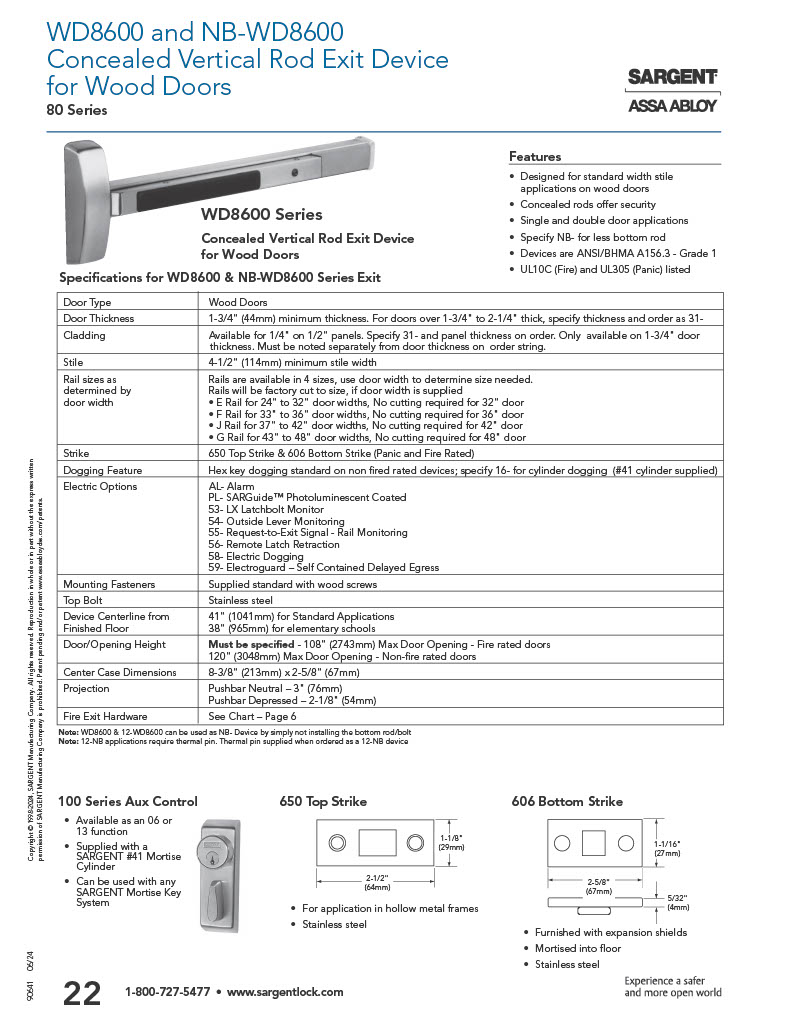

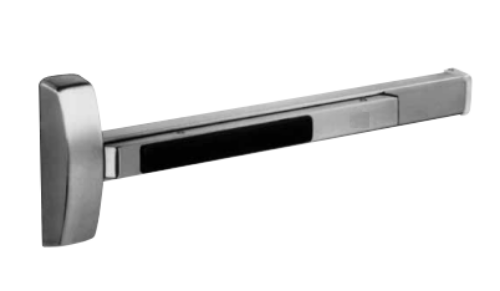

Sargent 12-WD8610F-32D Fire Rated Concealed Vertical Rod Exit Device for Wood Doors - Exit Only - Satin Stainless Steel - 36"

Product Details

Sargent 12-WD8610F-32D Fire Rated Concealed Vertical Rod Exit Device for Wood Doors - Exit Only - Satin Stainless Steel - 36"

UL Fire Label Exit Device

Door Width: for 33" to 36" door widths, No cutting required for 36" door

 Designed for standard width stile applications on wood doors Concealed rods offer security Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedDoor TypesWood, 1-3/4" (44mm) minimum thickness

Strike650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)

MountingFasteners Supplied standard with wood screws

Top BoltStainless steel

Device Centerline from Finished Floor 41" (1041mm) for Standard Applications,  38" (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)

Sargent 12-WD8610F-32D Fire Rated Concealed Vertical Rod Exit Device for Wood Doors - Exit Only - Satin Stainless Steel - 36"

SKU: 12-WD8610F-32D

In Stock

Handing *

$2,647.88

$4,194.00

You saved $1,546.12

About this item

SARGENT manufactures a full line of exit devices providing the best combination of simplicity, durability, strength, aesthetics and innovation. The WD8600 is designed for standard width stile applications on wood doors with a concealed rod for additional security

Resources

Sargent 12-WD8610F-32D Fire Rated Concealed Vertical Rod Exit Device for Wood Doors - Exit Only - Satin Stainless Steel - 36"

UL Fire Label Exit Device

Door Width: for 33" to 36" door widths, No cutting required for 36" door

 Designed for standard width stile applications on wood doors Concealed rods offer security Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedDoor TypesWood, 1-3/4" (44mm) minimum thickness

Strike650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)

MountingFasteners Supplied standard with wood screws

Top BoltStainless steel

Device Centerline from Finished Floor 41" (1041mm) for Standard Applications,  38" (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)
