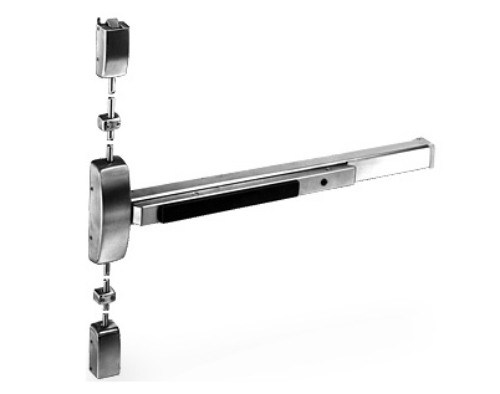

Sargent 16-8713F-32D Surface Vertical Rod Exit Device W/ Cylinder Dogging - Less Trim - 36"

Sargent 16-8713F-32D Surface Vertical Rod Exit Device W/ Cylinder Dogging - Less Trim - 36" - Satin Stainless Steel

Cylinder Dogging  Cylinder lockdown feature, #41 Cylinder Supplied.

Door Width: for 33" to 36" door widths, No cutting required for 36" door

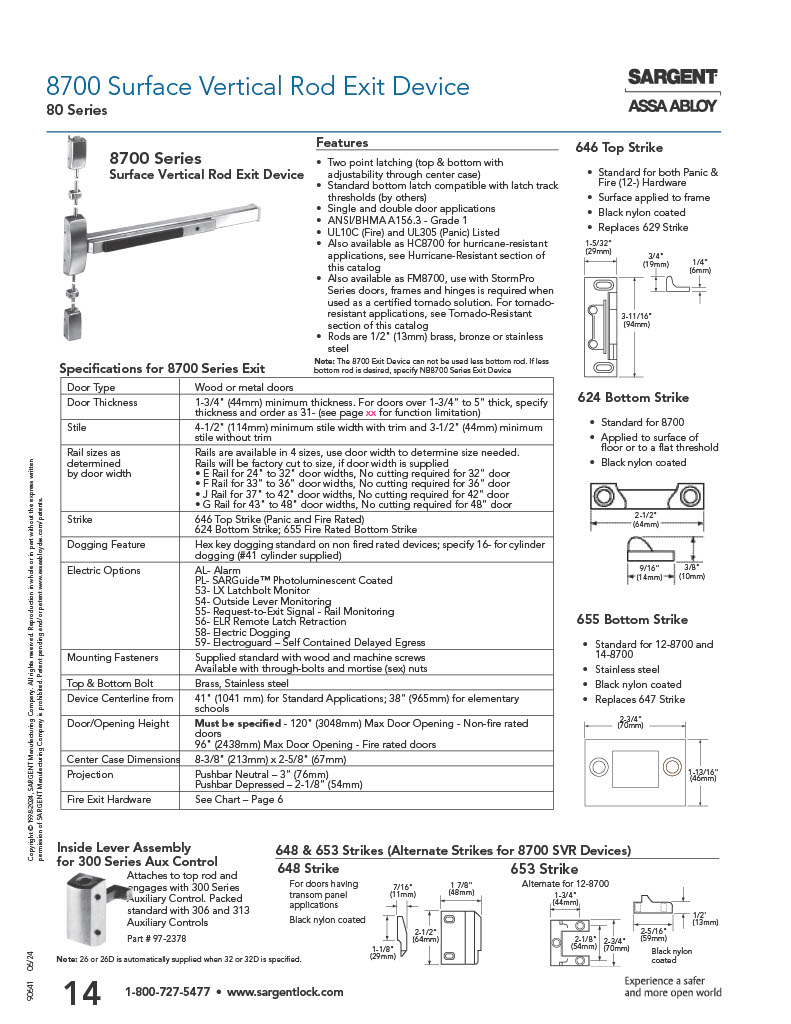

 Two point latching (top & bottom with adjustability through center case) Standard bottom latch compatible with latch track thresholds (by others) Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listed Rods are 1/2" (13mm) brass, bronze or stainless steel Note: The 8700 Exit Device can not be used less bottom rodDoor TypesWood or metal 1 3/4" (44mm) minimum thickness

Strike646 Top Strike (Panic and Fire Rated) 624 Bottom Strike; 655 Fire Rated Bottom Strike

Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts

Top & Bottom BoltBrass, Stainless steel

Device Centerline from41" (1041 mm) for Standard Applications; 38" (965mm) for elementary schools and to meet local accessibility standards when a 300 Series Auxiliary Control is used

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)

Model:Sargent 16-8713-F-32D, 168713F, 8713-F,  8713F, 168713F32D, 16-8713F-32D,
