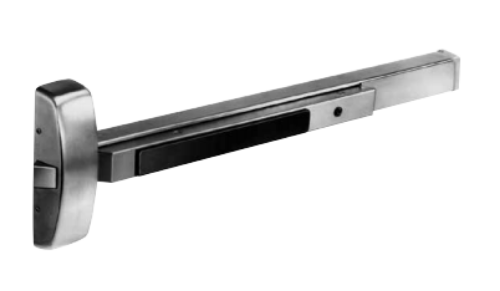

Sargent 16-8888-F-32D (8810) Rim Exit Device W/ Cylinder Dogging - Exit Only - 36"
Product Details
Sargent 16-8888-F-32D(8810)Rim Exit Device W/ Cylinder Dogging - Exit Only**- 36" - Satin Stainless Steel**
Cylinder Dogging Cylinder lockdown feature, #41 Cylinder Supplied.
For doors: 33" through 36" (82cm through 91cm)
Device & trim sold separately; easy to mix and match
Designed for standard width stile applications on wood and metal doors
Single and double door applications with a mullion
For DoorsWood or metal. 1-3/4" (44 mm) minimum thickness
MountingSupplied standard with wood and machine screws Available with through-bolts and mortise nuts
Chassis CoverCold drawn stainless steel, brass or bronze with ANSI/BHMA Finishes
ChassisNonferrous alloy (Panic) Ferrous alloy (Fire Rated)
RailsRoll Formed Stainless Steel, Brass or Bronze with ANSI/BHMA Finishes
HandNon-handed
Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
LatchboltStainless steel, 3/4" (19mm) throw
Strike649 Strike supplied standard for panic & fire rated openings
Model:Sargent 16-8888F32D, 16-8810-F-32D, 16-8888-F-32D ,
