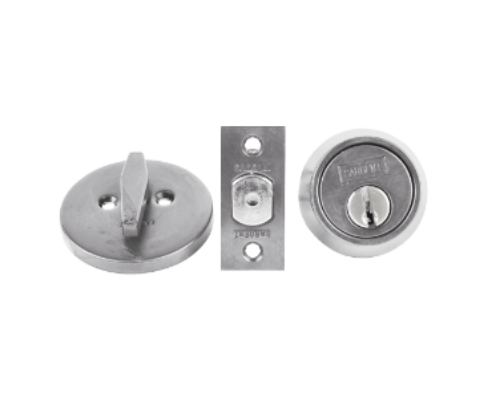

Sargent 475 Single Cylinder Deadbolt

Sargent 475 Single Cylinder Deadbolt- ANSI EO151

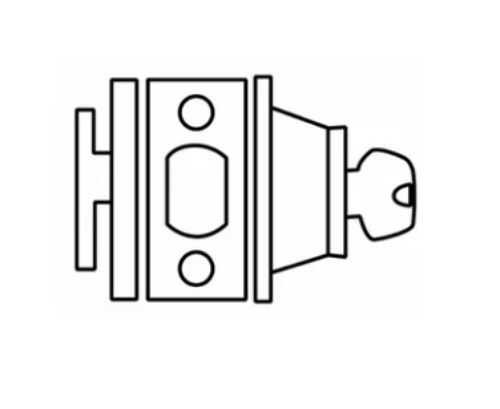

Key outside operates deadbolt Thumb turn inside operates deadbolt

For Doors:1-3/4" (44mm) to 2-3/8" (61mm) door thickness [except 475 with 2-1/16" (53mm) maximum thickness.] (1-3/8" door optional as 1-Option).

Door Prep:1-1/2" dia. (38mm) hole standard for all functions2-1/8" dia. (54mm) hole (161 door prep) for 474 and 475 onlywith adapter ring provided.

Backsets:2-3/8" (61mm) or 2-3/4" (70mm) adjustable backset. Strike: 2-3/4" x 1-1/8" (70mm x 29mm)Wrought brass, bronze or stainless steel.

Bolt:Brass with hardened steel pin 5/8" (16mm) x 13/16" (21mm) x 1' (25mm) throw.

Cylinder:Brass, 6-pin cylinder 2 keys provided. LA Keyway

Front:Stamped brass 2-1/4" (57mm) x 1" (25mm) wide with filler for 1-1/8" (29mm) wide.

Hand:Universal non handed

Turn Lever:Inside Turn Lever ADA Compliant

Finishes:26D Satin Chrome, 10B Oil Rubbed Bronze, 3 Bright Brass, 4 Satin Brass, 10 Satin Bronze, 26 Bright Chrome

Model:Sargent, 47526D, 47510B, 4753, 4754, 47510, 47526 Deadbolt

Specification:

Grade 2 ANSI 156.5 1000 series                                                                                                                                                                                                                                                                   Note:Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
