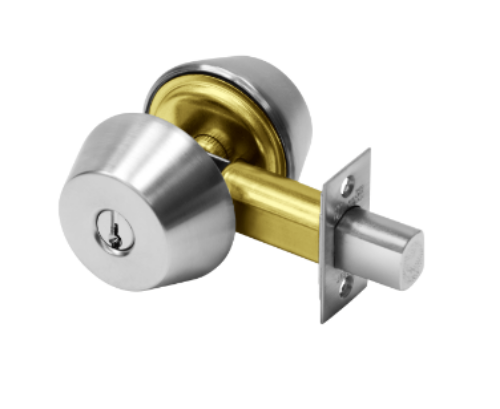

Sargent 484 Double Cylinder Deadbolt

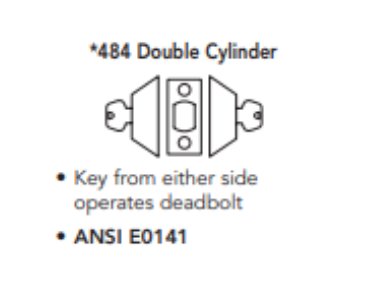

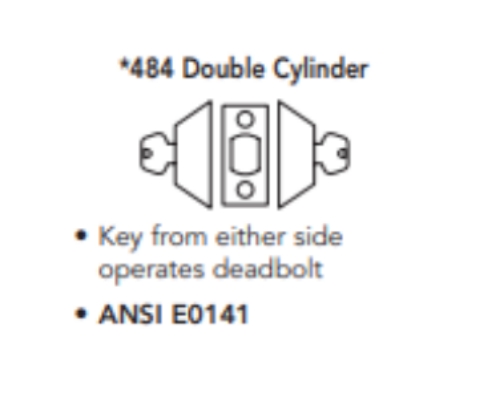

Sargent 484 Double Cylinder Deadbolt-ANSI EO141

Key from either side operates deadbolt

For Door:Fits 1-3/8" (35 mm) to 1-3/4" (44 mm) thick standard; For doors over 1-3/4" (44 mm) consult factory (2-1/4" Thick door max)

Door Prep:Fits 161 (standard) cut outs and Fits 160 with 2-3/8"(60mm) backset with 1"(25mm) front and for 1-3/8"(35mm) think door

Backsets:2-3/4" (70 mm) standard. 2-3/8" (60 mm) available (20 option) Strike: Wrought brass, bronze or stainless steel

Bolt:Solid steel with hardened steel pin insert and nickel silver plating; 7/8" (22 mm) x 5/8" (16 mm)x1"(25mm) throw

Cylinder:Brass, 6 pin. 2 nickel silver keys.Options:60 - Prepared for LFIC, accepts Sargent Large Format Interchangable (IC) cores. 70 - Prepared for SFIC, accepts Small Format (IC Best) Interchangable cores. LC - Less Cylinders

Front:Wrought brass, bronze or stainless steel 2-1/4" (57 mm) x 1-1/8" (29mm) with fixed bevel 1/8" (3mm) in 2" (51mm) furnished standard

Strike:2-3/4" x 1-1/8" (70mm x 29mm)Wrought brass, bronze or stainless steel

Hand:Non-handed, field reversible

Turn Lever: Non-ferrous

Housing:Non-ferrous, reinforced, one piece 2-1/2" (64mm) diameter.

Finishes:26D Satin Chrome, 10B Oil Rubbed Bronze, 3 Bright Brass, 4 Satin Brass, 10 Satin Bronze, 26 Bright Chrome

Model:Sargent, 48426D, 48410B, 4843, 4844, 48410, 48426, 6048426D, 6048410B, 604843, 604844, 6048410, 6048412, 7048426D, 7048410B, 704844, 7048410, 7048426, 2048426D, 2048410B, 204843, 204844, 2048410, 2048426.

ANSI: Meets ANSI A156.5 Grade 1 requirements with 408 or 488 strike

UL/cUL Listed:UL listed to US and Canadian safety stadards

Note:Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Positive pressure:Conforms to standards UL 10 C and UBC 7-2 (1997)
