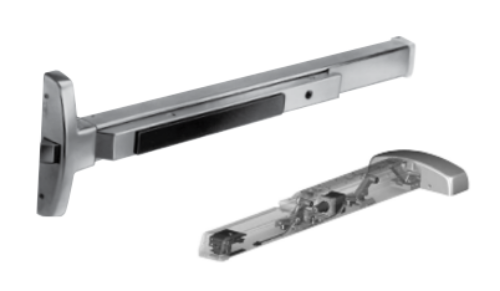

Sargent 56-8504F 32D Narrow Rim Exit - Electric Latch Retraction - 36" - Satin Stainless Steel

Sargent 56-8504F Narrow Rim Exit - W/ Electric Latch Retraction - 36"

Remote Dogging / Latch Retraction

 Motor driven latch retraction for smooth, precise operation Amount of rail retraction is automatically controlled by the 56- circuitry; System actively monitors its position and adjusts itself Digital retraction timer (0-20 seconds; factory setting is 5 seconds) Standard electric hinge - no special power transfer required Can be used for continuous and intermittent use UL Listed for Class II Circuitry Power Requirements: 24VDC regulated/filtered power supply (3500 Series) Current draw: .6A during retraction and .25A maintained in dogged hold position Requires 1A at 24VDC regulated/filtered power supply 5 year warrantyDoor Width: for 33" to 36" door widths

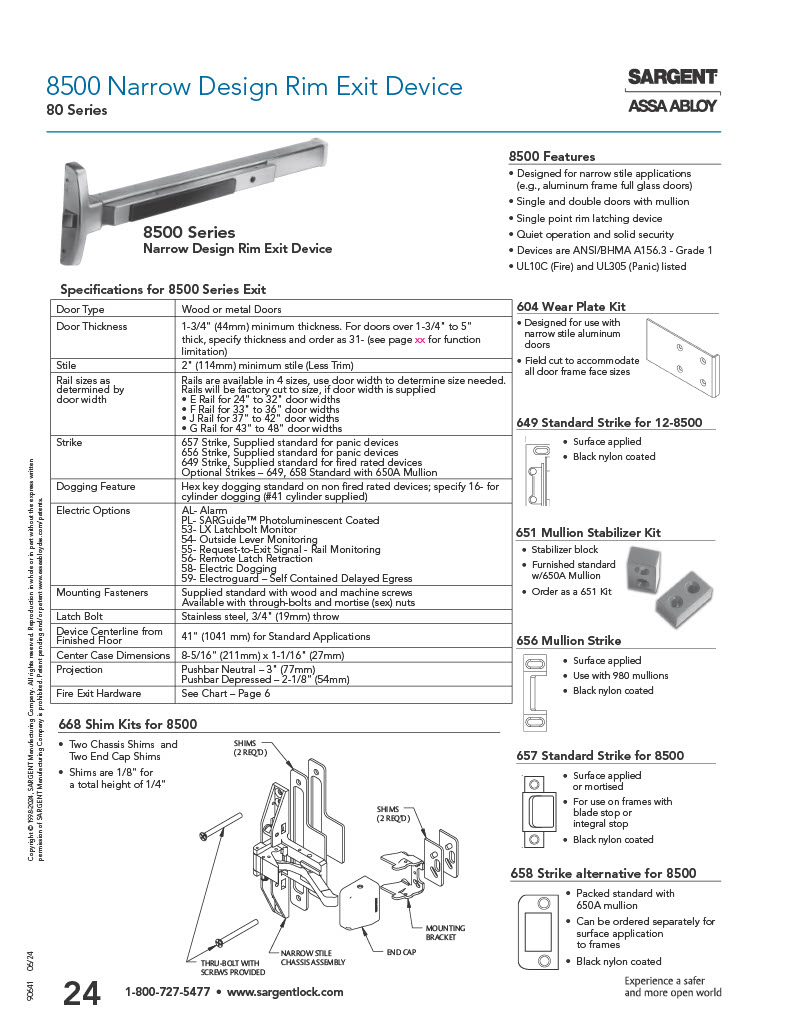

 Designed for narrow stile applications Single and double doors with mullion Single point rim latching device Quiet operation and solid security Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedDoor Types:Wood or metal 1-3/4" (44mm) minimum thickness.

Strike:657 Strike, Supplied standard for panic devices           656 Strike, Supplied standard for panic devices           649 Strike, Supplied standard for fired rated devices

Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts

Latch BoltStainless steel, 3/4" (19mm) throw

Device Centerline from Finished Floor41" (1041 mm) for Standard Applications

Center Case Dimensions8-5/16" (211mm) x 1-1/16" (27mm)

ProjectionPushbar Neutral – 3" (77mm) Pushbar Depressed – 2-1/8" (54mm)

Model:Sargent 56-8504F, 56-8504F, 56-8504F32D, 56-8504F10B, 56-8504-F-32D, 56-8504-F-10B, 56-8504F-32D, 8504F-10B
