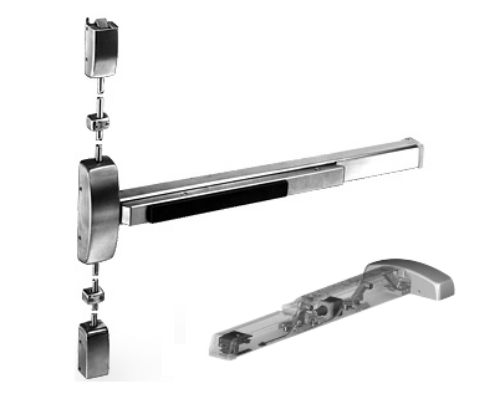

Sargent 56-8713F-32D Surface Vertical Rod Exit Device W/ Electric Latch Retraction - Less Trim - 36"

568700
1-Page14-SAR80
1-Page15-SAR80
568700
1-Page14-SAR80
1-Page15-SAR80
naxt
prev

Product Details

Sargent 56-8713F-32D Surface Vertical Rod Exit Device W/ Electric Latch Retraction - Less Trim - 36" - Satin Stainless Steel

 Remote Dogging / Latch Retraction (Minimum door width for narrow stile is 26" and wide stile is 28")

 Motor driven latch retraction for smooth, precise operation Amount of rail retraction is automatically controlled by the 56- circuitry; System actively monitors its position and adjusts itself Digital retraction timer (0-20 seconds; factory setting is 5 seconds) Standard electric hinge - no special power transfer required Can be used for continuous and intermittent use UL Listed for Class II Circuitry Power Requirements: 24VDC regulated/filtered power supply (3500 Series) Current draw: .6A during retraction and .25A maintained in dogged hold position

 Requires 1A at 24VDC regulated/filtered power supply 5 year warrantyDoor Width:for 33" to 36" door widths, No cutting required for 36" door

 Two point latching (top & bottom with adjustability through center case) Standard bottom latch compatible with latch track thresholds (by others) Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listed Rods are 1/2" (13mm) brass, bronze or stainless steel Note: The 8700 Exit Device can not be used less bottom rodDoor TypesWood or metal 1 3/4" (44mm) minimum thickness

Strike646 Top Strike (Panic and Fire Rated) 624 Bottom Strike; 655 Fire Rated Bottom Strike

Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts

Top & Bottom BoltBrass, Stainless steel

Device Centerline from41" (1041 mm) for Standard Applications; 38" (965mm) for elementary schools and to meet local accessibility standards when a 300 Series Auxiliary Control is used

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)

Model:Sargent 56-8713-F-32D, 568713F, 8713-F,  8713F, 568713F32D, 56-8713F-32D,

Sargent 56-8713F-32D Surface Vertical Rod Exit Device W/ Electric Latch Retraction - Less Trim - 36"

SKU: 56-8713F-32D

In Stock
Picture for manufacturer Sargent
icon Chat

$2,737.61

Handing *

About this item

SARGENT’s Electric Latch Retraction exit device is the perfect choice for high traffic egress doors that require access control. This non-handed exit device rail is durable and easy to install. It utilizes a latch retraction motor rather than a solenoid,ensuring quiet operation ideal for locations such as conference rooms theaters and libraries. Once retracted, the door functions in a push/pull manner.

The 56- exit device can be dogged for momentary ingress and egress and is commonly used in conjunction with an automatic door operator. The device can be dogged continuously on fire-rated devices that are tied into the building’s fire detection system.

Resources

Sargent 56-8713F-32D Surface Vertical Rod Exit Device W/ Electric Latch Retraction - Less Trim - 36" - Satin Stainless Steel

 Remote Dogging / Latch Retraction (Minimum door width for narrow stile is 26" and wide stile is 28")

 Motor driven latch retraction for smooth, precise operation Amount of rail retraction is automatically controlled by the 56- circuitry; System actively monitors its position and adjusts itself Digital retraction timer (0-20 seconds; factory setting is 5 seconds) Standard electric hinge - no special power transfer required Can be used for continuous and intermittent use UL Listed for Class II Circuitry Power Requirements: 24VDC regulated/filtered power supply (3500 Series) Current draw: .6A during retraction and .25A maintained in dogged hold position

 Requires 1A at 24VDC regulated/filtered power supply 5 year warrantyDoor Width:for 33" to 36" door widths, No cutting required for 36" door

 Two point latching (top & bottom with adjustability through center case) Standard bottom latch compatible with latch track thresholds (by others) Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listed Rods are 1/2" (13mm) brass, bronze or stainless steel Note: The 8700 Exit Device can not be used less bottom rodDoor TypesWood or metal 1 3/4" (44mm) minimum thickness

Strike646 Top Strike (Panic and Fire Rated) 624 Bottom Strike; 655 Fire Rated Bottom Strike

Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts

Top & Bottom BoltBrass, Stainless steel

Device Centerline from41" (1041 mm) for Standard Applications; 38" (965mm) for elementary schools and to meet local accessibility standards when a 300 Series Auxiliary Control is used

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)

Model:Sargent 56-8713-F-32D, 568713F, 8713-F,  8713F, 568713F32D, 56-8713F-32D,
