Sargent 56-8713F-32D Surface Vertical Rod Exit Device W/ Electric Latch Retraction - Less Trim - 36"
Product Details
Sargent 56-8713F-32D Surface Vertical Rod Exit Device W/ Electric Latch Retraction - Less Trim - 36" - Satin Stainless Steel
Remote Dogging / Latch Retraction (Minimum door width for narrow stile is 26" and wide stile is 28")
Motor driven latch retraction for smooth, precise operation Amount of rail retraction is automatically controlled by the 56- circuitry; System actively monitors its position and adjusts itself Digital retraction timer (0-20 seconds; factory setting is 5 seconds) Standard electric hinge - no special power transfer required Can be used for continuous and intermittent use UL Listed for Class II Circuitry Power Requirements: 24VDC regulated/filtered power supply (3500 Series) Current draw: .6A during retraction and .25A maintained in dogged hold position
Requires 1A at 24VDC regulated/filtered power supply 5 year warrantyDoor Width:for 33" to 36" door widths, No cutting required for 36" door

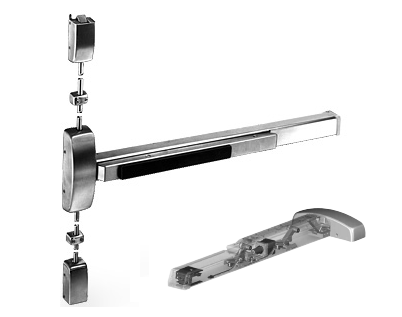

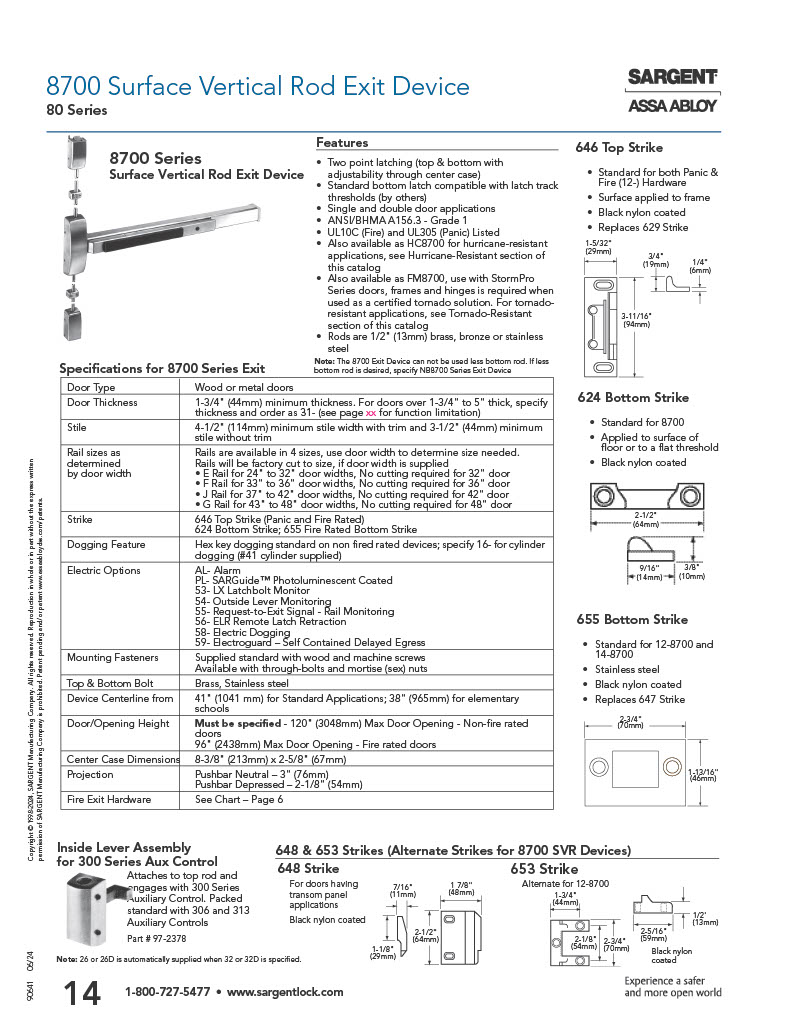

Two point latching (top & bottom with adjustability through center case) Standard bottom latch compatible with latch track thresholds (by others) Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listed Rods are 1/2" (13mm) brass, bronze or stainless steel Note: The 8700 Exit Device can not be used less bottom rodDoor TypesWood or metal 1 3/4" (44mm) minimum thickness
Strike646 Top Strike (Panic and Fire Rated) 624 Bottom Strike; 655 Fire Rated Bottom Strike
Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts
Top & Bottom BoltBrass, Stainless steel
Device Centerline from41" (1041 mm) for Standard Applications; 38" (965mm) for elementary schools and to meet local accessibility standards when a 300 Series Auxiliary Control is used
Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)
ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)
Model:Sargent 56-8713-F-32D, 568713F, 8713-F, 8713F, 568713F32D, 56-8713F-32D,
