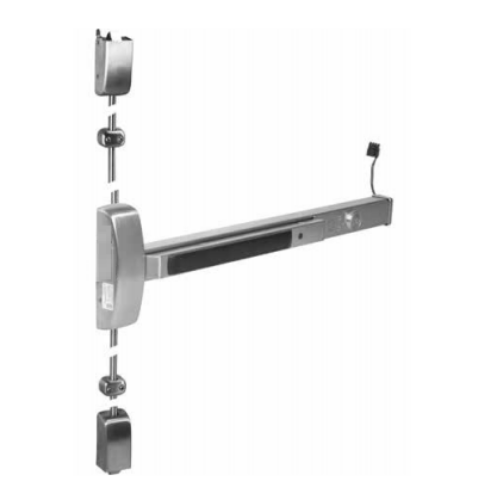

Sargent 59-8710F-32D Surface Vertical Rod Exit Device W/ Delayed Egress - Exit Only - 36" - Satin Stainless Steel

59-8710F
1-Page14-SAR80
1-Page15-SAR80
59-8710F
1-Page14-SAR80
1-Page15-SAR80
naxt
prev

Product Details

Sargent 59-8710F-32D Surface Vertical Rod Exit Device W/ Delayed Egress *- Exit Only - 36" - Satin Stainless Steel*

Self Contained Delayed Egress Device

 Depressing the push rail for one second or longer initiates an alarm LED visual notification system for easy identification of armed device; LED lights are field-selectable as red or green Momentary or maintained egress with key OR from a remote location Alarm disabled by key in the rail OR by remote reset Alarm sounds for fifteen seconds during unauthorized egress; after fifteen seconds lock releases. 30 second delay available with written permission of Authority having Jurisdiction External inhibit features with authorized egress, card reader access and scheduled delayed egress from access control pane 80dB horn enclosed in rail assembly Uses standard electric hinge - no special power transfer required Guarded & monitored latch and rail standard Power Requirements: 24VDC regulated/filtered power supplyDoor Width:for 32" to 36" door widths, No cutting required for 36" door

 Two point latching (top & bottom with adjustability through center case) Standard bottom latch compatible with latch track thresholds (by others) Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listed Rods are 1/2" (13mm) brass, bronze or stainless steel Note: The 8700 Exit Device can not be used less bottom rodDoor TypesWood or metal 1 3/4" (44mm) minimum thickness

Strike646 Top Strike (Panic and Fire Rated) 624 Bottom Strike; 655 Fire Rated Bottom Strike

Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts

Top & Bottom BoltBrass, Stainless steel

Device Centerline from41" (1041 mm) for Standard Applications; 38" (965mm) for elementary schools and to meet local accessibility standards when a 300 Series Auxiliary Control is used

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)

Model:Sargent, 59-8710-F, 598710F32D, 59-8710F-32D, 59-8710-F-32D,



Sargent 59-8710F-32D Surface Vertical Rod Exit Device W/ Delayed Egress - Exit Only - 36" - Satin Stainless Steel

SKU: 59-8710F-32D

In Stock
icon Chat
Picture for manufacturer Sargent

Handing *

$3,640.30

$5,862.00

You saved $2,221.70

About this item

The 59- Self Contained Delayed Egress Device is Commonly used in schools, nursing homes, shopping centers and libraries, delayed egress exit devices provide a means of monitoring egress to prevent unauthorized exit. When the exit device push pad is depressed, the 59-80 Series delayed egress exit device sounds an alarm from the rail to alert personnel that someone is attempting egress. The exit device stays secure for fifteen seconds, allowing time for personnel to respond.

Momentary release for egress (adjustable for 5, 10, 20 or 40 seconds) is provided by a cylinder on the rail or from a remote location. When the fire alarm system is activated (if connected), the exit device disarms and allows immediate egress.

Resources

Sargent 59-8710F-32D Surface Vertical Rod Exit Device W/ Delayed Egress *- Exit Only - 36" - Satin Stainless Steel*

Self Contained Delayed Egress Device

 Depressing the push rail for one second or longer initiates an alarm LED visual notification system for easy identification of armed device; LED lights are field-selectable as red or green Momentary or maintained egress with key OR from a remote location Alarm disabled by key in the rail OR by remote reset Alarm sounds for fifteen seconds during unauthorized egress; after fifteen seconds lock releases. 30 second delay available with written permission of Authority having Jurisdiction External inhibit features with authorized egress, card reader access and scheduled delayed egress from access control pane 80dB horn enclosed in rail assembly Uses standard electric hinge - no special power transfer required Guarded & monitored latch and rail standard Power Requirements: 24VDC regulated/filtered power supplyDoor Width:for 32" to 36" door widths, No cutting required for 36" door

 Two point latching (top & bottom with adjustability through center case) Standard bottom latch compatible with latch track thresholds (by others) Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listed Rods are 1/2" (13mm) brass, bronze or stainless steel Note: The 8700 Exit Device can not be used less bottom rodDoor TypesWood or metal 1 3/4" (44mm) minimum thickness

Strike646 Top Strike (Panic and Fire Rated) 624 Bottom Strike; 655 Fire Rated Bottom Strike

Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts

Top & Bottom BoltBrass, Stainless steel

Device Centerline from41" (1041 mm) for Standard Applications; 38" (965mm) for elementary schools and to meet local accessibility standards when a 300 Series Auxiliary Control is used

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)

Model:Sargent, 59-8710-F, 598710F32D, 59-8710F-32D, 59-8710-F-32D,
