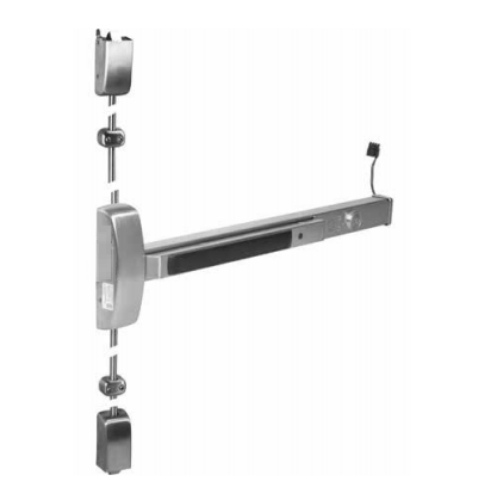

Sargent 59-8713F-32D Surface Vertical Rod Exit Device W/ Delayed Egress - Less Trim - 36" - Satin Stainless Steel
Product Details
Sargent 59-8713F-32D Surface Vertical Rod Exit Device W/ Delayed Egress - Less Trim - 36" - Satin Stainless Steel
Self Contained Delayed Egress Device
- Depressing the push rail for one second or longer initiates an alarm
- LED visual notification system for easy identification of armed device; LED lights are field-selectable as red or green
- Momentary or maintained egress with key OR from a remote location
- Alarm disabled by key in the rail OR by remote reset
- Alarm sounds for fifteen seconds during unauthorized egress; after fifteen seconds lock releases. 30 second delay available with written permission of Authority having Jurisdiction
- External inhibit features with authorized egress, card reader access and scheduled delayed egress from access control panel
- 80dB horn enclosed in rail assembly
- Uses standard electric hinge - no special power transfer required
- Guarded & monitored latch and rail standard
- Power Requirements: 24VDC regulated/filtered power supply
Door Width:for 32" to 36" door widths, No cutting required for 36" door
- Two point latching (top & bottom with adjustability through center case)
- Standard bottom latch compatible with latch track thresholds (by others)
- Single and double door applications
- Devices are ANSI A156.3 - Grade 1
- UL Fire and Panic listed
- Rods are 1/2" (13mm) brass, bronze or stainless steel
- Note: The 8700 Exit Device can not be used less bottom rod
Door TypesWood or metal 1 3/4" (44mm) minimum thickness
Strike646 Top Strike (Panic and Fire Rated) 624 Bottom Strike; 655 Fire Rated Bottom Strike
Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts
Top & Bottom BoltBrass, Stainless steel
Device Centerline from41" (1041 mm) for Standard Applications; 38" (965mm) for elementary schools and to meet local accessibility standards when a 300 Series Auxiliary Control is used
Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)
ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)
Model:Sargent 59-8713-F-32D, 598713F, 8713-F, 8713F, 598713F32D, 59-8713F-32D,
