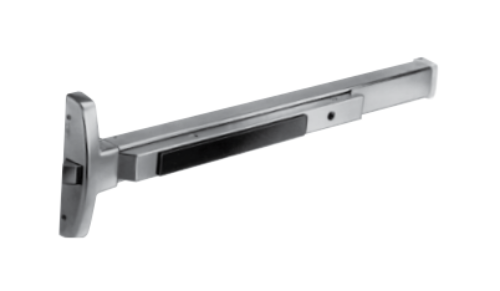

Sargent 8504E Narrow Design Rim Exit Device - Night Latch - 32"
Door Width: for 24" to 32" door widths
Designed for narrow stile applications Single and double doors with mullion Single point rim latching device Quiet operation and solid security Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedDoor Types:Wood or metal 1-3/4" (44mm) minimum thickness.
Strike:657 Strike, Supplied standard for panic devices
656 Strike, Supplied standard for panic devices
649 Strike, Supplied standard for fired rated devices
Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts
Latch BoltStainless steel, 3/4" (19mm) throw
Device Centerline from Finished Floor41" (1041 mm) for Standard Applications
Center Case Dimensions8-5/16" (211mm) x 1-1/16" (27mm)
ProjectionPushbar Neutral – 3" (77mm) Pushbar Depressed – 2-1/8" (54mm)
Model:Sargent 8504E, 8504E, 8504E32D, 8504E10B, 8504-E-32D, 8504-E-10B, 8504E-32D, 8504E-10B
