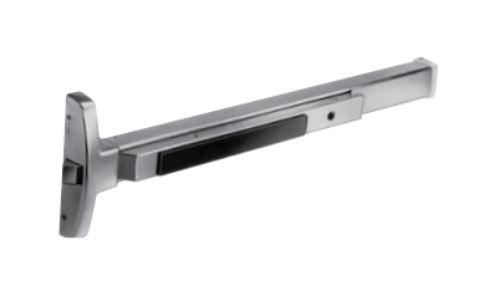

Sargent 8504F Narrow Design Rim Exit Device - Night Latch - 36"

Sargent 8504F Narrow Design Rim Exit Device - Night Latch - 36"

Door Width: for 33" to 36" door widths

 Designed for narrow stile applications Single and double doors with mullion Single point rim latching device Quiet operation and solid security Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedDoor Types:Wood or metal 1-3/4" (44mm) minimum thickness.

Strike:657 Strike, Supplied standard for panic devices           656 Strike, Supplied standard for panic devices           649 Strike, Supplied standard for fired rated devices

Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts

Latch BoltStainless steel, 3/4" (19mm) throw

Device Centerline from Finished Floor41" (1041 mm) for Standard Applications

Center Case Dimensions8-5/16" (211mm) x 1-1/16" (27mm)

ProjectionPushbar Neutral – 3" (77mm) Pushbar Depressed – 2-1/8" (54mm)

Model:Sargent 8504F, 8504F, 8504F32D, 8504F10B, 8504-F-32D, 8504-F-10B, 8504F-32D, 8504F-10B
