Sargent 862-32D Pull Trim - Satin Stainless Steel

About this item

The Sargent 862-32D is a pull-only trim for Sargent 80 Series exit devices, finished in 32D Satin Stainless Steel. The 862 is a 10-inch pull bar, 1-inch diameter, designed to mount on the exterior face of a Sargent 8800 or 8900 Series panic exit device where exterior entry by pull is required but no keyed cylinder access is needed. Pull-only trim is the correct specification when the building's access control system, electric strike, or electrified latch retraction on the exit device controls exterior access rather than a mechanical cylinder in the trim. American Locksets is an authorized ASSA ABLOY Sargent dealer stocking the 862-32D with same-day shipping and free shipping on all orders over $300.

Sargent 862 Pull Trim: Pull-Only Function Explained

Pull-only trim means the exterior handle provides a grip for pulling the door closed from outside, but does not mechanically retract the exit device latchbolt. Exterior entry is controlled at the exit device level by electric latch retraction, an electric strike, or a separate keyed access point elsewhere in the opening. On openings where the hardware schedule calls for a dummy pull on the exterior face of a panic device, the 862 is the correct trim selection from the Sargent 80 Series trim catalog.

This trim does not include a cylinder, a thumbpiece, or any key override. If keyed exterior access through the trim itself is required, a lever trim or thumbpiece pull trim with cylinder preparation is the correct specification instead of the 862. Confirm the access method for the opening before ordering.

Sargent 862-32D Specifications

• SKU: 862-32D

• Function: Pull Only. No cylinder. No key function

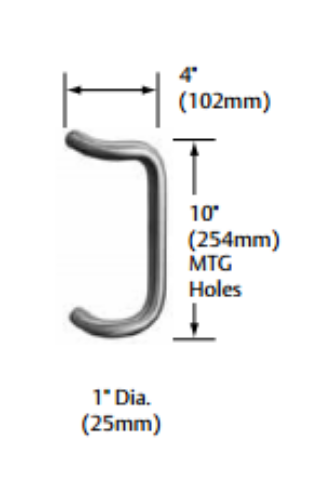

• Pull Bar: 10 inch length, 1 inch diameter round bar

• Finish: 32D Satin Stainless Steel

• Door Thickness: 1-3/4 inch standard

• Handing: Non-handed

Compatible Sargent Exit Devices

The Sargent 862 pull trim is designed for use with the Sargent 80 Series exit devices. Compatible models include:

• Sargent 8804 Rim Exit Device

• Sargent 8810 Rim Exit Device

• Sargent 8888 Rim Exit Device (Multi-Function)

• Sargent 8904 Mortise Exit Device

• Sargent 8910 Mortise Exit Device

The 862 trim installs directly on these exit devices using the standard Sargent 80 Series trim mounting provisions. Confirm the specific exit device model and trim mounting requirements on the installed or specified device before ordering.

32D Satin Stainless Steel Finish

The 32D finish is Satin Stainless Steel, a durable architectural finish that resists corrosion and fingerprinting in high-traffic commercial environments. Sargent's 80 Series exit devices in nickel finishes (26 and 26D) are supplied in 32 or 32D stainless to match. The 32D finish on the 862 trim coordinates with exit devices supplied in 32D and with stainless hardware specifications across healthcare, education, and institutional projects where satin stainless is the dominant finish specification.

The stainless steel construction of the 862 pull bar is consistent with the 80 Series trim material standard for satin and bright stainless specifications, providing long service life in high-cycle applications.

When to Specify the Sargent 862 Pull Trim

The 862 is specified on hardware schedules when the exterior of a panic exit door requires a pull grip without a keyway. Common applications include:

• Stairwell exit doors with electric latch retraction where the access control panel controls entry

• Exit doors where a separate card reader or keypad controls the electric strike and the trim is pull-only by design

• Secondary exit doors paired with a primary keyed entrance on the same opening system

Browse all Sargent Exit Device Trims and the complete Exit Device Trims and Mullion catalog at American Locksets.
